2019 Ford C-Max II Fuse Box Diagram
The 2019 Ford C-Max (II) has 3 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box (European C-Max)
Final-year (2019) C-Max and Grand C-Max: engine bay fuse box at the front left beside the battery; the lid lifts after its two catches are released. Positions per Ford plate E129925.
Production ended in mid-2019 on the June 2015 assignment: grille shutter on 36, diesel particulate filter vaporiser on 48, 47 empty. Relays from 23 June 2015 builds: R1 intercooler fan, R2 horn, R3 particulate filter vaporiser, R4, R8 and R12 cooling fan, R5 wiper on/off, R6 wiper speed, R7 heated windscreen, R9 headlamp washer, R10 starter, R11 A/C clutch, R13 blower, R14 engine control, R15 glow plugs, R16 ignition.
| No. | Function | Amp | Description |
|---|---|---|---|
| 7 | 40 AJCASE | ABS pump and electronic stability programme | |
| 8 | 30 AJCASE | Electronic stability programme valves | |
| 9 | 20 AJCASE | Headlamp washer pump | |
| 10 | 40 AJCASE | Blower motor | |
| 11 | 30 AJCASE | Auto-Start-Stop module | |
| 12 | 30 AJCASE | Powertrain control module | |
| 13 | 30 AJCASE | Starter relay | |
| 14 | 40 AJCASE | Heated windscreen, right-hand element | |
| 15 | 25 AJCASE | Intercooler fan on the 1.0L EcoBoost (25 A); cooling fan relay 1 on other engines (40 A) | |
| 16 | 40 AJCASE | Heated windscreen, left-hand element | |
| 17 | 20 AJCASE | Auxiliary heater | |
| 18 | 20 AJCASE | Windscreen wipers | |
| 19 | 5 AMINI | ABS and electronic stability programme module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Brake lamps | |
| 22 | 15 AMINI | Battery monitoring system | |
| 23 | 5 AMINI | Relay coils, lighting control | |
| 24 | 20 AMINI | Load space power point | |
| 25 | Not used | ||
| 26 | 15 AMINI | Transmission control module: 15 A with the MPS6 dual-clutch box, 25 A with the 6F35 automatic | |
| 27 | 15 AMINI | Air conditioning clutch | |
| 28 | 7.5 AMINI | Rear view camera, forward collision warning | |
| 29 | Not used | ||
| 30 | 5 AMINI | Powertrain control module | |
| 31 | Not used | ||
| 32 | 10 AMINI | Powertrain control module, cooling fan module relay | |
| 33 | 15 AMINI | Powertrain control module, ignition coils (20 A on the 1.0L EcoBoost) | |
| 34 | 10 AMINI | Powertrain control module | |
| 35 | 10 AMINI | Water-in-fuel sensor, powertrain control module, ignition coils | |
| 36 | 5 AMINI | Active grille shutter | |
| 37 | Not used | ||
| 38 | 15 AMINI | Powertrain control module | |
| 39 | 5 AMINI | Headlamp levelling | |
| 40 | 5 AMINI | Electric power assisted steering | |
| 41 | 20 AMINI | Body control module | |
| 42 | Not used | ||
| 43 | 15 AMINI | Headlamp levelling, adaptive front lighting | |
| 44 | 5 AMINI | Adaptive cruise control | |
| 45 | 10 AMINI | Heated washer jets | |
| 46 | 25 AJCASE | Cooling fan | |
| 47 | Not used | ||
| 48 | 15 AMINI | Diesel particulate filter vaporiser |

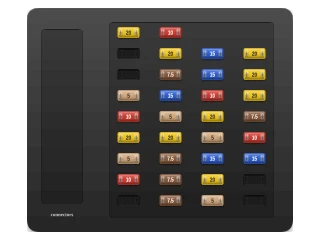

Passenger compartment fuse box (European C-Max)
2019 C-Max: under the glovebox on the passenger side. Pinch the two clips, lower the cover and pull it towards you.
Last production year, unchanged assignment since June 2015 builds; all fuses are mini blades.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump | |
| 57 | Not used | ||
| 58 | Not used | ||
| 59 | 5 AMINI | Passive anti-theft transceiver | |
| 60 | 10 AMINI | Interior lighting, driver door switch pack, glovebox lamp, ambient lighting | |
| 61 | 20 AMINI | Front cigar lighter, rear auxiliary power points | |
| 62 | 5 AMINI | Automatic wipers, humidity sensor, auto-dimming mirror | |
| 63 | 10 AMINI | Adaptive cruise control | |
| 64 | Not used | ||
| 65 | 10 AMINI | Tailgate release | |
| 66 | 20 AMINI | Driver door lock, fuel filler door lock, double locking | |
| 67 | 7.5 AMINI | SYNC module, GPS module, information display | |
| 68 | 15 AMINI | Electric steering column lock | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central locking | |
| 71 | 7.5 AMINI | Air conditioning | |
| 72 | 7.5 AMINI | Steering wheel module | |
| 73 | 7.5 AMINI | Data link connector, battery-backed alarm sounder | |
| 74 | 15 AMINI | High beam | |
| 75 | 15 AMINI | Front fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Front and rear washer pump | |
| 78 | 5 AMINI | Ignition switch, push-button start, keyless vehicle module | |
| 79 | 15 AMINI | Audio unit, hazard switch, electronic finish panel | |
| 80 | 20 AMINI | Sunroof | |
| 81 | 5 AMINI | Interior motion sensor, radio frequency receiver, sunshade | |
| 82 | 20 AMINI | Front and rear washer pump (ground side) | |
| 83 | 20 AMINI | Central locking (ground side) | |
| 84 | 20 AMINI | Driver door unlock, fuel filler door unlock, double locking | |
| 85 | 7.5 AMINI | Air conditioning, rear wiper relay, auxiliary heater, radio, adaptive cruise control | |
| 86 | 10 AMINI | Restraints control module, occupant classification sensor | |
| 87 | 15 AMINI | Heated steering wheel | |
| 88 | Not used | ||
| 89 | Not used |

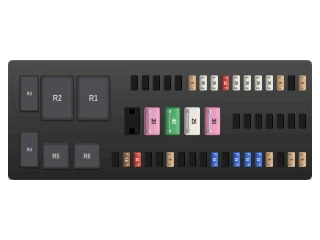

Load compartment fuse box (European C-Max)
2019 C-Max and Grand C-Max: luggage compartment fuse box behind the left-hand trim cover.
Final-year table as from June 2015: 12-23 empty, 41 trailer tow module, 44-45 power and heated mirrors.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 5 AMINI | Hands-free tailgate | |
| 2 | Not used | ||
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door control unit | |
| 5 | 25 AMINI | Front right door control unit | |
| 6 | 25 AMINI | Rear left door control unit | |
| 7 | 25 AMINI | Rear right door control unit | |
| 8 | 10 AMINI | Anti-theft alarm | |
| 9 | 25 AMINI | Driver seat | |
| 10 | 25 AMINI | Power windows | |
| 11 | 5 AMINI | Relay coil feed | |
| 12 | Not used | ||
| 13 | Not used | ||
| 14 | Not used | ||
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used | ||
| 19 | Not used | ||
| 20 | Not used | ||
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | 30 AJCASE | DC/AC power inverter | |
| 25 | 25 AJCASE | Power tailgate | |
| 26 | 40 AJCASE | Trailer tow module | |
| 27 | 30 AJCASE | Heated rear window | |
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot monitor, lane keeping, Active City Stop, rear camera | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | Not used | ||
| 32 | 5 AMINI | DC/AC power inverter | |
| 33 | 15 AMINI | Rear wiper relay | |
| 34 | 15 AMINI | Heated driver seat | |
| 35 | 15 AMINI | Heated passenger seat | |
| 36 | Not used | ||
| 37 | 15 AMINI | Sunshade | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | 5 AMINI | Trailer tow module | |
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | 10 AMINI | Power door mirrors | |
| 45 | 7.5 AMINI | Heated door mirrors | |
| 46 | Not used |
