2017 Ford C-Max II Fuse Box Diagram
The 2017 Ford C-Max (II) has 6 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Power distribution box (C-Max Hybrid and Energi)
2017 C-Max Hybrid and Energi: driver's-side power distribution box in the engine compartment (Ford plate E162196).
Unchanged fuses; the October 2016 manual marks F7-F18 as cartridge and F19-F36 as mini fuses. Vacuum pump relays R1 and R5 as in 2016.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 50 AMIDI | Cooling fan module | |
| 2 | 50 AMIDI | Electric water pump | |
| 3 | 50 AMIDI | Body control module supply 1 | |
| 4 | 50 AMIDI | Body control module supply 2 | |
| 5 | Not used | ||
| 6 | Not used | ||
| 7 | 40 AJCASE | Anti-lock brake pump | |
| 8 | 30 AJCASE | Anti-lock brake valves | |
| 9 | 40 AJCASE | Brake vacuum pump | |
| 10 | 40 AJCASE | Heater blower motor | |
| 11 | 30 AJCASE | Engine management | |
| 12 | Not used | ||
| 13 | 25 AJCASE | Powertrain control module relay | |
| 14 | 20 AJCASE | Rear wiper | |
| 15 | 30 AJCASE | Body control module battery (KL30) supply | |
| 16 | 20 AJCASE | Body control module run feed | |
| 17 | 20 AJCASE | Transmission oil pump (C-Max Energi) | |
| 18 | 20 AJCASE | Front wiper motor | |
| 19 | 5 AMINI | ABS and electronic stability control module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Stop lamp switch | |
| 22 | 5 AMINI | Brake vacuum pump monitoring | |
| 23 | 5 AMINI | Engine and powertrain control module run feed, transmission oil pump run feed | |
| 24 | 5 AMINI | Relay coils, lighting switch module | |
| 25 | 10 AMINI | Motor electronics cooling pump | |
| 26 | 5 AMINI | Electric power steering module run feed | |
| 27 | 5 AMINI | Mass air flow sensor | |
| 28 | 15 AMINI | Powertrain control module | |
| 29 | 10 AMINI | Electric air conditioning compressor, PTC cabin heater | |
| 30 | 10 AMINI | Engine control module, powertrain control module | |
| 31 | 5 AMINI | Charge port light ring (C-Max Energi) | |
| 32 | 20 AMINI | Vehicle power 2 | |
| 33 | 15 AMINI | Vehicle power 4 | |
| 34 | 10 AMINI | Fuel injectors | |
| 35 | 10 AMINI | Vehicle power 3 | |
| 36 | 20 AMINI | Vehicle power 1 |

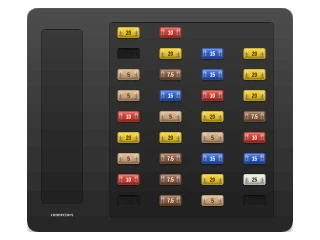

Passenger compartment fuse panel (C-Max Hybrid and Energi)
2017 C-Max Hybrid/Energi: below the glovebox on the passenger side; the trim panel comes away to expose four fuse columns.
Unchanged fuses from 2015. 81 feeds the power sunshade and remote receiver antenna, 85 the electronic run feed.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump feed | |
| 57 | Not used | ||
| 58 | 5 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 59 | 5 AMINI | Passive anti-theft system | |
| 60 | 10 AMINI | Interior lamps, driver door switch pack, glovebox lamp, overhead console switches | |
| 61 | 20 AMINI | Cigar lighter, second-row power point | |
| 62 | 5 AMINI | Automatic wiper module, auto-dimming mirror | |
| 63 | 10 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 64 | Not used | ||
| 65 | 10 AMINI | Liftgate release | |
| 66 | 20 AMINI | Driver door unlock feed | |
| 67 | 7.5 AMINI | Cell phone passport (C-Max Energi), multi-function display, GPS module, SYNC | |
| 68 | 15 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central lock and unlock feed | |
| 71 | 7.5 AMINI | Climate control module | |
| 72 | 7.5 AMINI | Steering wheel module | |
| 73 | 7.5 AMINI | Data link connector (OBD II) | |
| 74 | 15 AMINI | Headlamps | |
| 75 | 15 AMINI | Fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Washer pump | |
| 78 | 5 AMINI | Ignition switch, start button | |
| 79 | 15 AMINI | Radio, hazard switch | |
| 80 | 20 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 81 | 5 AMINI | Power sunshade, remote receiver antenna | |
| 82 | 20 AMINI | Washer pump ground side | |
| 83 | 20 AMINI | Central locking ground side | |
| 84 | 20 AMINI | Driver door unlock ground side | |
| 85 | 7.5 AMINI | Electronic run (15) feed | |
| 86 | 10 AMINI | Restraints control module, passenger airbag off indicator | |
| 87 | 15 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 88 | 25 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 89 | Not used |

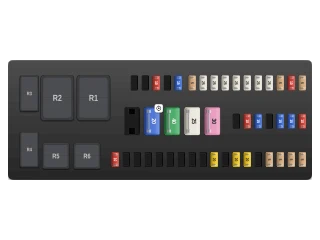

Luggage compartment fuse panel (C-Max Hybrid and Energi)
2017 C-Max Hybrid and Energi: left cargo area side panel, behind the wheel well, under a removable cover.
October 2016 manual: 8 becomes the passenger seat motor, 29 blind spot detection; the humidity sensor fuse 45 is dropped.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 5 AMINI | Hands-free liftgate module | |
| 2 | 10 AMINI | Keyless vehicle module | |
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door control unit | |
| 5 | 25 AMINI | Front right door control unit | |
| 6 | 25 AMINI | Rear left door control unit | |
| 7 | 25 AMINI | Rear right door control unit | |
| 8 | 25 AMINI | Passenger seat motor | |
| 9 | 25 AMINI | Driver seat motor | |
| 10 | 25 AMINI | Heated rear window | |
| 11 | 5 AMINI | Ignition relay | |
| 12 | 15 AMINI | Battery electronics control module (high-voltage battery) | |
| 13 | Not used | ||
| 14 | 10 AMINI | Plug-in charger (C-Max Energi) | |
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | 10 AMINI | Battery electronics control module | |
| 18 | 15 AMINI | High-voltage battery cooling fan | |
| 19 | 15 AMINI | Charger cooling fan (C-Max Energi) | |
| 20 | Not used | ||
| 21 | 15 AMINI | Smart data link connector | |
| 22 | 10 AMINI | Active noise cancellation | |
| 23 | Not used | ||
| 24 | 30 AJCASE | DC/AC power inverter | |
| 25 | 25 AJCASE | Power liftgate | |
| 26 | 40 AJCASE | AC/DC on-board charger (C-Max Energi) | |
| 27 | 20 AJCASE | Cargo area power outlet | |
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot information system | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | 5 AMINI | Rear view camera | |
| 32 | 5 AMINI | DC/AC power inverter | |
| 33 | Not used | ||
| 34 | 20 AMINI | Driver seat heater | |
| 35 | 20 AMINI | Passenger seat heater | |
| 36 | Not used | ||
| 37 | 20 AMINI | Power sunshade | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | Not used | ||
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | Not used | ||
| 46 | 10 AMINI | Fuel system |

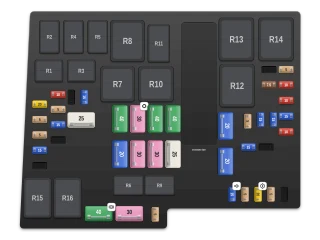

Engine compartment fuse box (European C-Max)
2017 C-Max and Grand C-Max: fuse and relay box at the left front of the engine compartment, next to the battery; release the catches and lift the lid. Positions as drawn on Ford plate E129925.
Late facelift table (unchanged since June 2015 builds): 1.0L and 1.5L EcoBoost, 1.5L and 2.0L TDCi. 15 is 25 A on the 1.0L (intercooler fan) and 40 A elsewhere (cooling fan relay 1); 33 is 20 A on the 1.0L. Relays from 23 June 2015 builds: R1 intercooler fan, R2 horn, R3 particulate filter vaporiser, R4, R8 and R12 cooling fan, R5 wiper on/off, R6 wiper speed, R7 heated windscreen, R9 headlamp washer, R10 starter, R11 A/C clutch, R13 blower, R14 engine control, R15 glow plugs, R16 ignition.
| No. | Function | Amp | Description |
|---|---|---|---|
| 7 | 40 AJCASE | ABS pump and electronic stability programme | |
| 8 | 30 AJCASE | Electronic stability programme valves | |
| 9 | 20 AJCASE | Headlamp washer pump | |
| 10 | 40 AJCASE | Blower motor | |
| 11 | 30 AJCASE | Auto-Start-Stop module | |
| 12 | 30 AJCASE | Powertrain control module | |
| 13 | 30 AJCASE | Starter relay | |
| 14 | 40 AJCASE | Heated windscreen, right-hand element | |
| 15 | 25 AJCASE | Intercooler fan on the 1.0L EcoBoost (25 A); cooling fan relay 1 on other engines (40 A) | |
| 16 | 40 AJCASE | Heated windscreen, left-hand element | |
| 17 | 20 AJCASE | Auxiliary heater | |
| 18 | 20 AJCASE | Windscreen wipers | |
| 19 | 5 AMINI | ABS and electronic stability programme module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Brake lamps | |
| 22 | 15 AMINI | Battery monitoring system | |
| 23 | 5 AMINI | Relay coils, lighting control | |
| 24 | 20 AMINI | Load space power point | |
| 25 | Not used | ||
| 26 | 15 AMINI | Transmission control module: 15 A with the MPS6 dual-clutch box, 25 A with the 6F35 automatic | |
| 27 | 15 AMINI | Air conditioning clutch | |
| 28 | 7.5 AMINI | Rear view camera, forward collision warning | |
| 29 | Not used | ||
| 30 | 5 AMINI | Powertrain control module | |
| 31 | Not used | ||
| 32 | 10 AMINI | Powertrain control module, cooling fan module relay | |
| 33 | 15 AMINI | Powertrain control module, ignition coils (20 A on the 1.0L EcoBoost) | |
| 34 | 10 AMINI | Powertrain control module | |
| 35 | 10 AMINI | Water-in-fuel sensor, powertrain control module, ignition coils | |
| 36 | 5 AMINI | Active grille shutter | |
| 37 | Not used | ||
| 38 | 15 AMINI | Powertrain control module | |
| 39 | 5 AMINI | Headlamp levelling | |
| 40 | 5 AMINI | Electric power assisted steering | |
| 41 | 20 AMINI | Body control module | |
| 42 | Not used | ||
| 43 | 15 AMINI | Headlamp levelling, adaptive front lighting | |
| 44 | 5 AMINI | Adaptive cruise control | |
| 45 | 10 AMINI | Heated washer jets | |
| 46 | 25 AJCASE | Cooling fan | |
| 47 | Not used | ||
| 48 | 15 AMINI | Diesel particulate filter vaporiser |

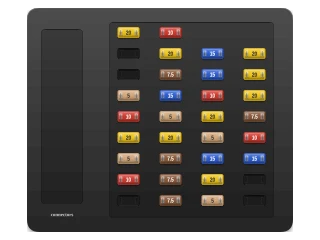

Passenger compartment fuse box (European C-Max)
Below the glovebox of the 2017 C-Max and Grand C-Max, behind a cover with two pinch clips; the fuses plug into the body control module.
Same table as 2016: SYNC and GPS on 67, sunroof on 80, heated steering wheel on 87 (15 A).
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump | |
| 57 | Not used | ||
| 58 | Not used | ||
| 59 | 5 AMINI | Passive anti-theft transceiver | |
| 60 | 10 AMINI | Interior lighting, driver door switch pack, glovebox lamp, ambient lighting | |
| 61 | 20 AMINI | Front cigar lighter, rear auxiliary power points | |
| 62 | 5 AMINI | Automatic wipers, humidity sensor, auto-dimming mirror | |
| 63 | 10 AMINI | Adaptive cruise control | |
| 64 | Not used | ||
| 65 | 10 AMINI | Tailgate release | |
| 66 | 20 AMINI | Driver door lock, fuel filler door lock, double locking | |
| 67 | 7.5 AMINI | SYNC module, GPS module, information display | |
| 68 | 15 AMINI | Electric steering column lock | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central locking | |
| 71 | 7.5 AMINI | Air conditioning | |
| 72 | 7.5 AMINI | Steering wheel module | |
| 73 | 7.5 AMINI | Data link connector, battery-backed alarm sounder | |
| 74 | 15 AMINI | High beam | |
| 75 | 15 AMINI | Front fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Front and rear washer pump | |
| 78 | 5 AMINI | Ignition switch, push-button start, keyless vehicle module | |
| 79 | 15 AMINI | Audio unit, hazard switch, electronic finish panel | |
| 80 | 20 AMINI | Sunroof | |
| 81 | 5 AMINI | Interior motion sensor, radio frequency receiver, sunshade | |
| 82 | 20 AMINI | Front and rear washer pump (ground side) | |
| 83 | 20 AMINI | Central locking (ground side) | |
| 84 | 20 AMINI | Driver door unlock, fuel filler door unlock, double locking | |
| 85 | 7.5 AMINI | Air conditioning, rear wiper relay, auxiliary heater, radio, adaptive cruise control | |
| 86 | 10 AMINI | Restraints control module, occupant classification sensor | |
| 87 | 15 AMINI | Heated steering wheel | |
| 88 | Not used | ||
| 89 | Not used |

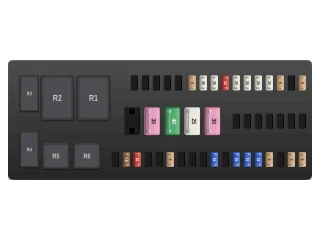

Load compartment fuse box (European C-Max)
Left rear of the luggage compartment of the 2017 C-Max and Grand C-Max, behind a removable side trim cover.
Cartridges 24-27: inverter, power tailgate, trailer module, heated rear window. Mini fuses fill the three rows, each numbered right to left.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 5 AMINI | Hands-free tailgate | |
| 2 | Not used | ||
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door control unit | |
| 5 | 25 AMINI | Front right door control unit | |
| 6 | 25 AMINI | Rear left door control unit | |
| 7 | 25 AMINI | Rear right door control unit | |
| 8 | 10 AMINI | Anti-theft alarm | |
| 9 | 25 AMINI | Driver seat | |
| 10 | 25 AMINI | Power windows | |
| 11 | 5 AMINI | Relay coil feed | |
| 12 | Not used | ||
| 13 | Not used | ||
| 14 | Not used | ||
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used | ||
| 19 | Not used | ||
| 20 | Not used | ||
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | 30 AJCASE | DC/AC power inverter | |
| 25 | 25 AJCASE | Power tailgate | |
| 26 | 40 AJCASE | Trailer tow module | |
| 27 | 30 AJCASE | Heated rear window | |
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot monitor, lane keeping, Active City Stop, rear camera | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | Not used | ||
| 32 | 5 AMINI | DC/AC power inverter | |
| 33 | 15 AMINI | Rear wiper relay | |
| 34 | 15 AMINI | Heated driver seat | |
| 35 | 15 AMINI | Heated passenger seat | |
| 36 | Not used | ||
| 37 | 15 AMINI | Sunshade | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | 5 AMINI | Trailer tow module | |
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | 10 AMINI | Power door mirrors | |
| 45 | 7.5 AMINI | Heated door mirrors | |
| 46 | Not used |
