2013 Ford C-Max II Fuse Box Diagram
The 2013 Ford C-Max (II) has 6 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Power distribution box (C-Max Hybrid and Energi)
C-Max Hybrid and C-Max Energi power distribution box: in the engine compartment on the driver's side; lift the release lever at the rear of the cover. Ford plate E162196 - not the European box. A pre-fuse box on its side and a second one on the 12 V battery at the rear hold dealer-only high-current fuses.
2013 table: F1-F4 are 50 A Midi fuses, F7-F18 cartridges, the rest mini fuses. Relays: R2 horn, R3 hybrid powertrain control, R4 front wiper, R6 wiper speed, R7 vacuum pump, R8 ignition, R10 vacuum pump sensor, R12 cooling fan, R13 blower, R14 engine control.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 50 AMIDI | Cooling fan module | |
| 2 | 50 AMIDI | Electric water pump | |
| 3 | 50 AMIDI | Body control module supply 1 | |
| 4 | 50 AMIDI | Body control module supply 2 | |
| 5 | Not used | ||
| 6 | Not used | ||
| 7 | 40 AJCASE | Anti-lock brake pump | |
| 8 | 30 AJCASE | Anti-lock brake valves | |
| 9 | 40 AJCASE | Brake vacuum pump | |
| 10 | 40 AJCASE | Heater blower motor | |
| 11 | 30 AJCASE | Engine management | |
| 12 | Not used | ||
| 13 | 25 AJCASE | Powertrain control module relay | |
| 14 | 20 AJCASE | Rear wiper | |
| 15 | 30 AJCASE | Body control module battery (KL30) supply | |
| 16 | 20 AJCASE | Body control module run feed | |
| 17 | 20 AJCASE | Transmission oil pump (C-Max Energi) | |
| 18 | 20 AJCASE | Front wiper motor | |
| 19 | 5 AMINI | ABS and electronic stability control module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Stop lamp switch | |
| 22 | 5 AMINI | Brake vacuum pump monitoring | |
| 23 | 5 AMINI | Engine and powertrain control module run feed, transmission oil pump run feed | |
| 24 | 5 AMINI | Relay coils, lighting switch module | |
| 25 | 10 AMINI | Motor electronics cooling pump | |
| 26 | 5 AMINI | Electric power steering module run feed | |
| 27 | 5 AMINI | Mass air flow sensor | |
| 28 | 15 AMINI | Powertrain control module | |
| 29 | 10 AMINI | Electric air conditioning compressor, PTC cabin heater | |
| 30 | 10 AMINI | Engine control module, powertrain control module | |
| 31 | 5 AMINI | Charge port light ring (C-Max Energi) | |
| 32 | 20 AMINI | Vehicle power 2 | |
| 33 | 15 AMINI | Vehicle power 4 | |
| 34 | 10 AMINI | Fuel injectors | |
| 35 | 10 AMINI | Vehicle power 3 | |
| 36 | 20 AMINI | Vehicle power 1 |

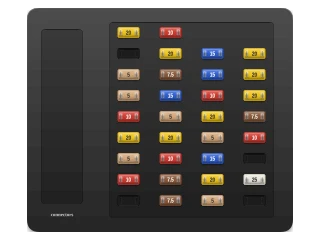

Passenger compartment fuse panel (C-Max Hybrid and Energi)
C-Max Hybrid/Energi passenger compartment fuse panel: right-hand side below the glovebox, behind a trim panel that may need removing. Same body control module housing as the European car (plate E129926), US assignment.
Columns numbered top to bottom. June 2013 manual: spare fuses fitted in 58, 63, 68, 80 and 88; 67 includes the Energi cell phone passport.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump feed | |
| 57 | Not used | ||
| 58 | 5 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 59 | 5 AMINI | Passive anti-theft system | |
| 60 | 10 AMINI | Interior lamps, driver door switch pack, glovebox lamp, overhead console switches | |
| 61 | 20 AMINI | Cigar lighter, second-row power point | |
| 62 | 5 AMINI | Automatic wiper module, auto-dimming mirror | |
| 63 | 10 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 64 | Not used | ||
| 65 | 10 AMINI | Liftgate release | |
| 66 | 20 AMINI | Driver door unlock feed | |
| 67 | 7.5 AMINI | Cell phone passport (C-Max Energi), multi-function display, GPS module, SYNC | |
| 68 | 15 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central lock and unlock feed | |
| 71 | 10 AMINI | Manual climate control head, climate control module | |
| 72 | 7.5 AMINI | Steering wheel module | |
| 73 | 7.5 AMINI | Data link connector (OBD II) | |
| 74 | 15 AMINI | Headlamps | |
| 75 | 15 AMINI | Fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Washer pump | |
| 78 | 5 AMINI | Ignition switch, start button | |
| 79 | 15 AMINI | Radio, hazard switch | |
| 80 | 20 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 81 | 5 AMINI | Power sunshade, remote receiver antenna | |
| 82 | 20 AMINI | Washer pump ground side | |
| 83 | 20 AMINI | Central locking ground side | |
| 84 | 20 AMINI | Driver door unlock ground side | |
| 85 | 7.5 AMINI | Electronic run (15) feed | |
| 86 | 10 AMINI | Restraints control module, passenger airbag off indicator | |
| 87 | Not used | ||
| 88 | 25 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 89 | Not used |

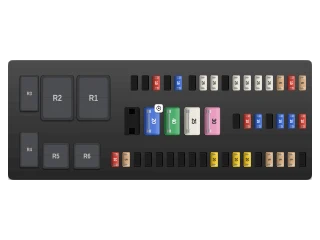

Luggage compartment fuse panel (C-Max Hybrid and Energi)
C-Max Hybrid/Energi luggage compartment fuse panel: behind the left rear wheel well trim in the cargo area; remove the panel cover. Housing per Ford plate E129927, numbered right to left.
Hybrid-only circuits: battery electronics control module 12 and 17, high-voltage battery fan 18; Energi-only: charger 14 and 26, charger fan 19. Relays: R1 rear run relay, R2 heated rear window, R3 fuel door (Energi), R6 rear wiper.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 5 AMINI | Hands-free liftgate module | |
| 2 | 10 AMINI | Keyless vehicle module | |
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door control unit | |
| 5 | 25 AMINI | Front right door control unit | |
| 6 | 25 AMINI | Rear left door control unit | |
| 7 | 25 AMINI | Rear right door control unit | |
| 8 | Not used | ||
| 9 | 25 AMINI | Driver seat motor | |
| 10 | 25 AMINI | Heated rear window | |
| 11 | Not used | ||
| 12 | 15 AMINI | Battery electronics control module (high-voltage battery) | |
| 13 | Not used | ||
| 14 | 10 AMINI | Plug-in charger (C-Max Energi) | |
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | 10 AMINI | Battery electronics control module | |
| 18 | 15 AMINI | High-voltage battery cooling fan | |
| 19 | 15 AMINI | Charger cooling fan (C-Max Energi) | |
| 20 | Not used | ||
| 21 | 15 AMINI | Smart data link connector | |
| 22 | 10 AMINI | Active noise cancellation | |
| 23 | Not used | ||
| 24 | 30 AJCASE | DC/AC power inverter | |
| 25 | 25 AJCASE | Power liftgate | |
| 26 | 40 AJCASE | AC/DC on-board charger (C-Max Energi) | |
| 27 | 20 AJCASE | Cargo area power outlet | |
| 28 | Not used | ||
| 29 | Not used | ||
| 30 | 5 AMINI | Parking aid module | |
| 31 | 5 AMINI | Rear view camera | |
| 32 | 5 AMINI | DC/AC power inverter | |
| 33 | Not used | ||
| 34 | 20 AMINI | Driver seat heater | |
| 35 | 20 AMINI | Passenger seat heater | |
| 36 | Not used | ||
| 37 | 20 AMINI | Power sunshade | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | Not used | ||
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | 5 AMINI | Humidity sensor | |
| 46 | 10 AMINI | Fuel system |

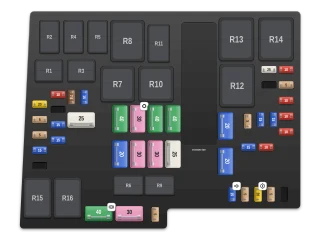

Engine compartment fuse box (European C-Max)
Battery junction box of the 2013 C-Max: left front of the engine bay beside the battery, under a clip-on lid. The positions follow Ford plate E129925 seen from above.
Ford's table for cars built from 22 April 2013 adds the 1.0L EcoBoost circuits: 11 feeds the Auto-Start-Stop voltage quality module, 15 the intercooler fan, 35 the intercooler relay coil (15 A diesel filter heater on TDCi). Earlier 2013 builds used the launch table.
| No. | Function | Amp | Description |
|---|---|---|---|
| 7 | 40 AJCASE | ABS pump motor | |
| 8 | 30 AJCASE | ABS valve block | |
| 9 | 20 AJCASE | Headlamp washer pump | |
| 10 | 40 AJCASE | Heater blower motor | |
| 11 | 30 AJCASE | Voltage quality module (Auto-Start-Stop) | |
| 12 | 30 AJCASE | Engine control relay feed | |
| 13 | 30 AJCASE | Starter relay | |
| 14 | 40 AJCASE | Heated windscreen, right-hand element | |
| 15 | 25 AJCASE | Intercooler fan (1.0L EcoBoost) | |
| 16 | 40 AJCASE | Heated windscreen, left-hand element | |
| 17 | 20 AJCASE | Fuel-fired auxiliary heater | |
| 18 | 20 AJCASE | Windscreen wiper motor | |
| 19 | 5 AMINI | ABS and electronic stability programme module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Stop lamp switch | |
| 22 | 15 AMINI | Battery monitoring sensor | |
| 23 | 5 AMINI | Relay coils, lighting switch module | |
| 24 | 20 AMINI | Load space power outlet | |
| 25 | 10 AMINI | Electric door mirrors | |
| 26 | 15 AMINI | Powertrain control module | |
| 27 | 15 AMINI | Air conditioning compressor clutch | |
| 28 | Not used | ||
| 29 | 25 AMINI | Heated rear window | |
| 30 | 5 AMINI | Engine control module | |
| 31 | Not used | ||
| 32 | 10 AMINI | EGR valve, swirl valves, oxygen sensor heater; fan control relay coil and run-on water pump on the 1.0L EcoBoost | |
| 33 | 10 AMINI | Ignition coils | |
| 34 | 10 AMINI | Fuel injectors | |
| 35 | 5 AMINI | Intercooler relay coil (1.0L EcoBoost, 5 A); diesel fuel filter heater (15 A) | |
| 36 | 10 AMINI | Powertrain control module | |
| 37 | Not used | ||
| 38 | 15 AMINI | Powertrain and transmission control modules | |
| 39 | 5 AMINI | Headlamp control module | |
| 40 | 5 AMINI | Electric power assisted steering | |
| 41 | 20 AMINI | Body control module | |
| 42 | 15 AMINI | Rear window wiper | |
| 43 | 15 AMINI | Headlamp levelling | |
| 44 | Not used | ||
| 45 | 10 AMINI | Heated washer jets | |
| 46 | 25 AJCASE | Front power windows | |
| 47 | 7.5 AMINI | Heated door mirrors | |
| 48 | 15 AMINI | Diesel vaporiser |
Passenger compartment fuse box (European C-Max)
Under the glovebox of the 2013 C-Max and Grand C-Max: release the two clips of the trim cover, swing it down and pull it towards you to reach the body control module fuses (plate E129926).
From April 2013 builds the diagnostics/alarm fuse 73 is 7.5 A instead of 5 A; everything else matches the launch table.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump | |
| 57 | Not used | ||
| 58 | Not used | ||
| 59 | 5 AMINI | Passive anti-theft system (immobiliser) | |
| 60 | 10 AMINI | Interior lamps, driver door switch pack, glovebox lamp | |
| 61 | 20 AMINI | Cigar lighter, second-row power point | |
| 62 | 5 AMINI | Rain sensor, auto-dimming interior mirror | |
| 63 | Not used | ||
| 64 | Not used | ||
| 65 | 10 AMINI | Tailgate release | |
| 66 | 20 AMINI | Driver door lock, double locking | |
| 67 | 7.5 AMINI | Information and entertainment display | |
| 68 | 15 AMINI | Steering column lock | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central locking | |
| 71 | 10 AMINI | Air conditioning | |
| 72 | 7.5 AMINI | Steering wheel control module | |
| 73 | 7.5 AMINI | Alarm, on-board diagnostics socket | |
| 74 | 15 AMINI | Main beam | |
| 75 | 15 AMINI | Front fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Washer pump | |
| 78 | 5 AMINI | Ignition switch or start button | |
| 79 | 15 AMINI | Radio, navigation, voice control, DVD player, CD changer, door lock button | |
| 80 | Not used | ||
| 81 | 5 AMINI | Interior motion sensor, radio frequency receiver, sun blinds | |
| 82 | 20 AMINI | Washer pump ground side | |
| 83 | 20 AMINI | Central locking ground side | |
| 84 | 20 AMINI | Driver door lock and double locking ground side | |
| 85 | 7.5 AMINI | Radio, navigation, passenger airbag deactivation switch, heated seat switches, parking heater, manual A/C module | |
| 86 | 10 AMINI | Restraint system (airbags) | |
| 87 | Not used | ||
| 88 | Not used | ||
| 89 | Not used |
Load compartment fuse box (European C-Max)
Luggage compartment, left side: remove the trim cover above the wheel arch to reach the rear fuse box of the 2013 C-Max (plate E129927).
From April 2013, Auto-Start-Stop cars feed the A/C module, cluster, display and audio unit from 12-15 so they survive engine restarts; 46 powers the driver assistance sensors on those cars.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | 10 AMINI | Keyless vehicle module | |
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door module: window, locking, folding and heated mirror | |
| 5 | 25 AMINI | Front right door module: window, locking, folding and heated mirror | |
| 6 | 25 AMINI | Rear left door module (window) | |
| 7 | 25 AMINI | Rear right door module (window) | |
| 8 | 10 AMINI | Alarm siren | |
| 9 | 25 AMINI | Power driver seat | |
| 10 | Not used | ||
| 11 | Not used | ||
| 12 | 10 AMINI | Air conditioning module (Auto-Start-Stop cars) | |
| 13 | 5 AMINI | Instrument cluster (Auto-Start-Stop cars) | |
| 14 | 7.5 AMINI | Information display, GPS module (Auto-Start-Stop cars) | |
| 15 | 15 AMINI | Audio unit and its control panel (Auto-Start-Stop cars) | |
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used | ||
| 19 | Not used | ||
| 20 | Not used | ||
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | 30 AJCASE | Power inverter (230 V socket) | |
| 25 | 25 AJCASE | Power tailgate | |
| 26 | 40 AJCASE | Trailer module and accessories | |
| 27 | Not used | ||
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot, lane keeping, Active City Stop, rear camera; extended ignition feed on Auto-Start-Stop cars | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | 5 AMINI | Rear view camera | |
| 32 | 5 AMINI | Power inverter | |
| 33 | Not used | ||
| 34 | 15 AMINI | Heated driver seat | |
| 35 | 15 AMINI | Heated front passenger seat | |
| 36 | Not used | ||
| 37 | 20 AMINI | Sun blinds | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | Not used | ||
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | Not used | ||
| 46 | 5 AMINI | Blind spot, lane keeping aid, rear camera (Auto-Start-Stop cars) |
