2010 Ford C-Max II Fuse Box Diagram
The 2010 Ford C-Max (II) has 3 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box (European C-Max)
Front left of the engine bay of the European C-Max and seven-seat Grand C-Max, beside the battery: unclip the black lid of the battery junction box and lift it off. Ford's plate E129925 shows the box from above with the front of the car at the top.
2010 launch cars (series production from autumn 2010) follow Ford's first handbook table: positions 11 and 15 empty, 25 feeding the door mirrors, 29 the heated rear window and 46 the front windows. F1 to F6 are high-current fuses not on the plate. Relay housings carry the plate's R codes.
| No. | Function | Amp | Description |
|---|---|---|---|
| 7 | 40 AJCASE | ABS pump motor | |
| 8 | 30 AJCASE | ABS valve block | |
| 9 | 20 AJCASE | Headlamp washer pump | |
| 10 | 40 AJCASE | Heater blower motor | |
| 11 | Not used | ||
| 12 | 30 AJCASE | Engine control relay feed | |
| 13 | 30 AJCASE | Starter relay | |
| 14 | 40 AJCASE | Heated windscreen, right-hand element | |
| 15 | Not used | ||
| 16 | 40 AJCASE | Heated windscreen, left-hand element | |
| 17 | 20 AJCASE | Fuel-fired auxiliary heater | |
| 18 | 20 AJCASE | Windscreen wiper motor | |
| 19 | 5 AMINI | ABS and electronic stability programme module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Stop lamp switch | |
| 22 | 15 AMINI | Battery monitoring sensor | |
| 23 | 5 AMINI | Relay coils, lighting switch module | |
| 24 | 20 AMINI | Load space power outlet | |
| 25 | 10 AMINI | Electric door mirrors | |
| 26 | 15 AMINI | Powertrain control module | |
| 27 | 15 AMINI | Air conditioning compressor clutch | |
| 28 | Not used | ||
| 29 | 25 AMINI | Heated rear window | |
| 30 | 5 AMINI | Engine control module | |
| 31 | Not used | ||
| 32 | 10 AMINI | EGR valve, swirl control valves, heated oxygen sensor (engine management) | |
| 33 | 10 AMINI | Ignition coils | |
| 34 | 10 AMINI | Fuel injectors | |
| 35 | 15 AMINI | Diesel fuel filter heater, active grille shutter | |
| 36 | 10 AMINI | Engine control module | |
| 37 | 5 AMINI | Anti-lock braking system | |
| 38 | 15 AMINI | Engine and transmission control modules | |
| 39 | 5 AMINI | Headlamp control module | |
| 40 | 5 AMINI | Electric power assisted steering | |
| 41 | 20 AMINI | Body control module | |
| 42 | 15 AMINI | Rear window wiper | |
| 43 | 15 AMINI | Headlamp levelling | |
| 44 | Not used | ||
| 45 | 10 AMINI | Heated washer jets | |
| 46 | 25 AJCASE | Front power windows | |
| 47 | 7.5 AMINI | Heated door mirrors | |
| 48 | 15 AMINI | Diesel vaporiser (particulate filter regeneration) |

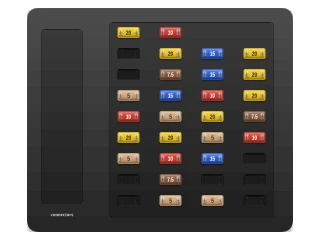

Passenger compartment fuse box (European C-Max)
Behind a trim cover below the glovebox on the passenger side (right in left-hand-drive cars): pinch the two retaining clips, lower the cover and pull it towards you. The fuses sit in the body control module, shown here as on Ford plate E129926.
Four columns numbered top to bottom: 56-64, 65-73, then 74-81 and 82-89 starting one row lower. 2010 launch table: 73 is 5 A.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump | |
| 57 | Not used | ||
| 58 | Not used | ||
| 59 | 5 AMINI | Passive anti-theft system (immobiliser) | |
| 60 | 10 AMINI | Interior lamps, driver door switch pack, glovebox lamp | |
| 61 | 20 AMINI | Cigar lighter, second-row power point | |
| 62 | 5 AMINI | Rain sensor, auto-dimming interior mirror | |
| 63 | Not used | ||
| 64 | Not used | ||
| 65 | 10 AMINI | Tailgate release | |
| 66 | 20 AMINI | Driver door lock, double locking | |
| 67 | 7.5 AMINI | Information and entertainment display | |
| 68 | 15 AMINI | Steering column lock | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central locking | |
| 71 | 10 AMINI | Air conditioning | |
| 72 | 7.5 AMINI | Steering wheel control module | |
| 73 | 5 AMINI | Alarm, on-board diagnostics socket | |
| 74 | 15 AMINI | Main beam | |
| 75 | 15 AMINI | Front fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Washer pump | |
| 78 | 5 AMINI | Ignition switch or start button | |
| 79 | 15 AMINI | Radio, navigation, voice control, DVD player, CD changer, door lock button | |
| 80 | Not used | ||
| 81 | 5 AMINI | Interior motion sensor, radio frequency receiver, sun blinds | |
| 82 | 20 AMINI | Washer pump ground side | |
| 83 | 20 AMINI | Central locking ground side | |
| 84 | 20 AMINI | Driver door lock and double locking ground side | |
| 85 | 7.5 AMINI | Radio, navigation, passenger airbag deactivation switch, heated seat switches, parking heater, manual A/C module | |
| 86 | 10 AMINI | Restraint system (airbags) | |
| 87 | Not used | ||
| 88 | Not used | ||
| 89 | Not used |

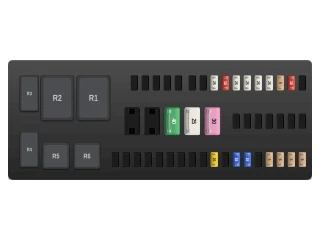

Load compartment fuse box (European C-Max)
Load compartment fuse box: behind the trim cover on the left-hand side of the luggage area, above the wheel arch; turn the fasteners and remove the cover. Layout per Ford plate E129927.
Every row is numbered right to left: 1-16 along the top (a gap after 11), 17-23 and the cartridges 24-28 in the middle, 29-46 along the bottom. 2010 table: 1 and 10-23 empty.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | 10 AMINI | Keyless vehicle module | |
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door module: window, locking, folding and heated mirror | |
| 5 | 25 AMINI | Front right door module: window, locking, folding and heated mirror | |
| 6 | 25 AMINI | Rear left door module (window) | |
| 7 | 25 AMINI | Rear right door module (window) | |
| 8 | 10 AMINI | Alarm siren | |
| 9 | 25 AMINI | Power driver seat | |
| 10 | Not used | ||
| 11 | Not used | ||
| 12 | Not used | ||
| 13 | Not used | ||
| 14 | Not used | ||
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used | ||
| 19 | Not used | ||
| 20 | Not used | ||
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | 30 AJCASE | Power inverter (230 V socket) | |
| 25 | 25 AJCASE | Power tailgate | |
| 26 | 40 AJCASE | Trailer module and accessories | |
| 27 | Not used | ||
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot information system | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | 5 AMINI | Rear view camera | |
| 32 | 5 AMINI | Power inverter | |
| 33 | Not used | ||
| 34 | 15 AMINI | Heated driver seat | |
| 35 | 15 AMINI | Heated front passenger seat | |
| 36 | Not used | ||
| 37 | 20 AMINI | Sun blinds | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | Not used | ||
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | Not used | ||
| 46 | Not used |
