2011 Ford C-Max II Fuse Box Diagram
The 2011 Ford C-Max (II) has 3 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box (European C-Max)
The European C-Max keeps its main fuse and relay box in the left front corner of the engine compartment, next to the 12 V battery; the cover lifts after its catches are released. Layout as on Ford plate E129925, viewed from above, windscreen side at the bottom.
2011 model year: the August 2011 owner's handbook assignment. The ABS pump and valve cartridges (7, 8) sit low in front of the relays, the four heated-windscreen and starter cartridges in the centre block. Relays are drawn with the plate's R numbers only.
| No. | Function | Amp | Description |
|---|---|---|---|
| 7 | 40 AJCASE | ABS pump motor | |
| 8 | 30 AJCASE | ABS valve block | |
| 9 | 20 AJCASE | Headlamp washer pump | |
| 10 | 40 AJCASE | Heater blower motor | |
| 11 | Not used | ||
| 12 | 30 AJCASE | Engine control relay feed | |
| 13 | 30 AJCASE | Starter relay | |
| 14 | 40 AJCASE | Heated windscreen, right-hand element | |
| 15 | Not used | ||
| 16 | 40 AJCASE | Heated windscreen, left-hand element | |
| 17 | 20 AJCASE | Fuel-fired auxiliary heater | |
| 18 | 20 AJCASE | Windscreen wiper motor | |
| 19 | 5 AMINI | ABS and electronic stability programme module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Stop lamp switch | |
| 22 | 15 AMINI | Battery monitoring sensor | |
| 23 | 5 AMINI | Relay coils, lighting switch module | |
| 24 | 20 AMINI | Load space power outlet | |
| 25 | 10 AMINI | Electric door mirrors | |
| 26 | 15 AMINI | Powertrain control module | |
| 27 | 15 AMINI | Air conditioning compressor clutch | |
| 28 | Not used | ||
| 29 | 25 AMINI | Heated rear window | |
| 30 | 5 AMINI | Engine control module | |
| 31 | Not used | ||
| 32 | 10 AMINI | EGR valve, swirl control valves, heated oxygen sensor (engine management) | |
| 33 | 10 AMINI | Ignition coils | |
| 34 | 10 AMINI | Fuel injectors | |
| 35 | 15 AMINI | Diesel fuel filter heater, active grille shutter | |
| 36 | 10 AMINI | Engine control module | |
| 37 | 5 AMINI | Anti-lock braking system | |
| 38 | 15 AMINI | Engine and transmission control modules | |
| 39 | 5 AMINI | Headlamp control module | |
| 40 | 5 AMINI | Electric power assisted steering | |
| 41 | 20 AMINI | Body control module | |
| 42 | 15 AMINI | Rear window wiper | |
| 43 | 15 AMINI | Headlamp levelling | |
| 44 | Not used | ||
| 45 | 10 AMINI | Heated washer jets | |
| 46 | 25 AJCASE | Front power windows | |
| 47 | 7.5 AMINI | Heated door mirrors | |
| 48 | 15 AMINI | Diesel vaporiser (particulate filter regeneration) |

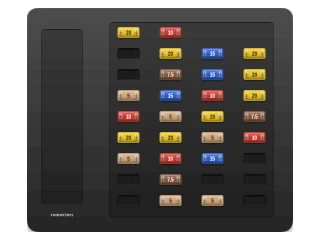

Passenger compartment fuse box (European C-Max)
The passenger compartment fuses of the European C-Max live in the body control module under the glovebox; unclip the lower trim cover (pinch both clips) and let it drop towards the footwell. Plate E129926.
Columns run top-down, left column first. On 2011 cars 67 feeds the information display and 68 the electric steering column lock.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump | |
| 57 | Not used | ||
| 58 | Not used | ||
| 59 | 5 AMINI | Passive anti-theft system (immobiliser) | |
| 60 | 10 AMINI | Interior lamps, driver door switch pack, glovebox lamp | |
| 61 | 20 AMINI | Cigar lighter, second-row power point | |
| 62 | 5 AMINI | Rain sensor, auto-dimming interior mirror | |
| 63 | Not used | ||
| 64 | Not used | ||
| 65 | 10 AMINI | Tailgate release | |
| 66 | 20 AMINI | Driver door lock, double locking | |
| 67 | 7.5 AMINI | Information and entertainment display | |
| 68 | 15 AMINI | Steering column lock | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central locking | |
| 71 | 10 AMINI | Air conditioning | |
| 72 | 7.5 AMINI | Steering wheel control module | |
| 73 | 5 AMINI | Alarm, on-board diagnostics socket | |
| 74 | 15 AMINI | Main beam | |
| 75 | 15 AMINI | Front fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Washer pump | |
| 78 | 5 AMINI | Ignition switch or start button | |
| 79 | 15 AMINI | Radio, navigation, voice control, DVD player, CD changer, door lock button | |
| 80 | Not used | ||
| 81 | 5 AMINI | Interior motion sensor, radio frequency receiver, sun blinds | |
| 82 | 20 AMINI | Washer pump ground side | |
| 83 | 20 AMINI | Central locking ground side | |
| 84 | 20 AMINI | Driver door lock and double locking ground side | |
| 85 | 7.5 AMINI | Radio, navigation, passenger airbag deactivation switch, heated seat switches, parking heater, manual A/C module | |
| 86 | 10 AMINI | Restraint system (airbags) | |
| 87 | Not used | ||
| 88 | Not used | ||
| 89 | Not used |

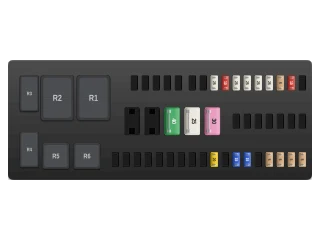

Load compartment fuse box (European C-Max)
The rear fuse box of the C-Max sits behind the left side trim of the boot, forward of the tail lamp; remove the cover to reach it (plate E129927).
Numbers run right to left on all three rows. 2011 cars: door modules 4-7, keyless entry 2-3, power tailgate 25, trailer module 26.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | 10 AMINI | Keyless vehicle module | |
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door module: window, locking, folding and heated mirror | |
| 5 | 25 AMINI | Front right door module: window, locking, folding and heated mirror | |
| 6 | 25 AMINI | Rear left door module (window) | |
| 7 | 25 AMINI | Rear right door module (window) | |
| 8 | 10 AMINI | Alarm siren | |
| 9 | 25 AMINI | Power driver seat | |
| 10 | Not used | ||
| 11 | Not used | ||
| 12 | Not used | ||
| 13 | Not used | ||
| 14 | Not used | ||
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used | ||
| 19 | Not used | ||
| 20 | Not used | ||
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | 30 AJCASE | Power inverter (230 V socket) | |
| 25 | 25 AJCASE | Power tailgate | |
| 26 | 40 AJCASE | Trailer module and accessories | |
| 27 | Not used | ||
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot information system | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | 5 AMINI | Rear view camera | |
| 32 | 5 AMINI | Power inverter | |
| 33 | Not used | ||
| 34 | 15 AMINI | Heated driver seat | |
| 35 | 15 AMINI | Heated front passenger seat | |
| 36 | Not used | ||
| 37 | 20 AMINI | Sun blinds | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | Not used | ||
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | Not used | ||
| 46 | Not used |
