2016 Ford C-Max II Fuse Box Diagram
The 2016 Ford C-Max (II) has 6 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Power distribution box (C-Max Hybrid and Energi)
2016 C-Max Hybrid/Energi: power distribution box on the driver's side of the engine bay under a lever-released cover.
2016 re-allocates relays: R1 and R5 vacuum pump, R7 and R10 empty; R2 horn, R3 hybrid powertrain control, R4 front wiper, R6 wiper high/low, R8 ignition, R12 cooling fan, R13 blower, R14 engine control.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 50 AMIDI | Cooling fan module | |
| 2 | 50 AMIDI | Electric water pump | |
| 3 | 50 AMIDI | Body control module supply 1 | |
| 4 | 50 AMIDI | Body control module supply 2 | |
| 5 | Not used | ||
| 6 | Not used | ||
| 7 | 40 AJCASE | Anti-lock brake pump | |
| 8 | 30 AJCASE | Anti-lock brake valves | |
| 9 | 40 AJCASE | Brake vacuum pump | |
| 10 | 40 AJCASE | Heater blower motor | |
| 11 | 30 AJCASE | Engine management | |
| 12 | Not used | ||
| 13 | 25 AJCASE | Powertrain control module relay | |
| 14 | 20 AJCASE | Rear wiper | |
| 15 | 30 AJCASE | Body control module battery (KL30) supply | |
| 16 | 20 AJCASE | Body control module run feed | |
| 17 | 20 AJCASE | Transmission oil pump (C-Max Energi) | |
| 18 | 20 AJCASE | Front wiper motor | |
| 19 | 5 AMINI | ABS and electronic stability control module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Stop lamp switch | |
| 22 | 5 AMINI | Brake vacuum pump monitoring | |
| 23 | 5 AMINI | Engine and powertrain control module run feed, transmission oil pump run feed | |
| 24 | 5 AMINI | Relay coils, lighting switch module | |
| 25 | 10 AMINI | Motor electronics cooling pump | |
| 26 | 5 AMINI | Electric power steering module run feed | |
| 27 | 5 AMINI | Mass air flow sensor | |
| 28 | 15 AMINI | Powertrain control module | |
| 29 | 10 AMINI | Electric air conditioning compressor, PTC cabin heater | |
| 30 | 10 AMINI | Engine control module, powertrain control module | |
| 31 | 5 AMINI | Charge port light ring (C-Max Energi) | |
| 32 | 20 AMINI | Vehicle power 2 | |
| 33 | 15 AMINI | Vehicle power 4 | |
| 34 | 10 AMINI | Fuel injectors | |
| 35 | 10 AMINI | Vehicle power 3 | |
| 36 | 20 AMINI | Vehicle power 1 |

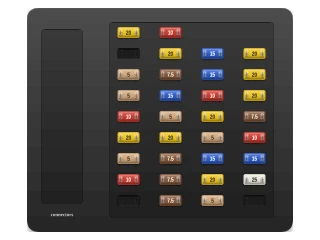

Passenger compartment fuse panel (C-Max Hybrid and Energi)
Passenger compartment fuse panel of the 2016 C-Max Hybrid and Energi, right-hand side below the glovebox (plate E129926).
Same as 2015: spares in 58, 63, 68, 80, 87 and 88; 56 fuel pump, 86 restraints module and passenger airbag indicator.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump feed | |
| 57 | Not used | ||
| 58 | 5 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 59 | 5 AMINI | Passive anti-theft system | |
| 60 | 10 AMINI | Interior lamps, driver door switch pack, glovebox lamp, overhead console switches | |
| 61 | 20 AMINI | Cigar lighter, second-row power point | |
| 62 | 5 AMINI | Automatic wiper module, auto-dimming mirror | |
| 63 | 10 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 64 | Not used | ||
| 65 | 10 AMINI | Liftgate release | |
| 66 | 20 AMINI | Driver door unlock feed | |
| 67 | 7.5 AMINI | Cell phone passport (C-Max Energi), multi-function display, GPS module, SYNC | |
| 68 | 15 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central lock and unlock feed | |
| 71 | 7.5 AMINI | Climate control module | |
| 72 | 7.5 AMINI | Steering wheel module | |
| 73 | 7.5 AMINI | Data link connector (OBD II) | |
| 74 | 15 AMINI | Headlamps | |
| 75 | 15 AMINI | Fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Washer pump | |
| 78 | 5 AMINI | Ignition switch, start button | |
| 79 | 15 AMINI | Radio, hazard switch | |
| 80 | 20 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 81 | 5 AMINI | Power sunshade, remote receiver antenna | |
| 82 | 20 AMINI | Washer pump ground side | |
| 83 | 20 AMINI | Central locking ground side | |
| 84 | 20 AMINI | Driver door unlock ground side | |
| 85 | 7.5 AMINI | Electronic run (15) feed | |
| 86 | 10 AMINI | Restraints control module, passenger airbag off indicator | |
| 87 | 15 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 88 | 25 AMINI | Spare fuse fitted in this socket, no circuit assigned | |
| 89 | Not used |

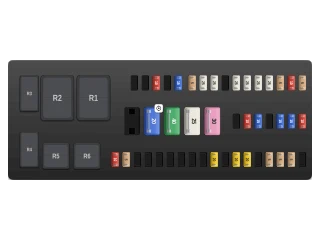

Luggage compartment fuse panel (C-Max Hybrid and Energi)
2016 C-Max Hybrid/Energi: remove the left rear cargo trim cover behind the wheel well to reach the panel.
Same fuses as 2015; rows numbered right to left with the five cartridges 24-28 in the middle row.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 5 AMINI | Hands-free liftgate module | |
| 2 | 10 AMINI | Keyless vehicle module | |
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door control unit | |
| 5 | 25 AMINI | Front right door control unit | |
| 6 | 25 AMINI | Rear left door control unit | |
| 7 | 25 AMINI | Rear right door control unit | |
| 8 | Not used | ||
| 9 | 25 AMINI | Driver seat motor | |
| 10 | 25 AMINI | Heated rear window | |
| 11 | 5 AMINI | Ignition relay | |
| 12 | 15 AMINI | Battery electronics control module (high-voltage battery) | |
| 13 | Not used | ||
| 14 | 10 AMINI | Plug-in charger (C-Max Energi) | |
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | 10 AMINI | Battery electronics control module | |
| 18 | 15 AMINI | High-voltage battery cooling fan | |
| 19 | 15 AMINI | Charger cooling fan (C-Max Energi) | |
| 20 | Not used | ||
| 21 | 15 AMINI | Smart data link connector | |
| 22 | 10 AMINI | Active noise cancellation | |
| 23 | Not used | ||
| 24 | 30 AJCASE | DC/AC power inverter | |
| 25 | 25 AJCASE | Power liftgate | |
| 26 | 40 AJCASE | AC/DC on-board charger (C-Max Energi) | |
| 27 | 20 AJCASE | Cargo area power outlet | |
| 28 | Not used | ||
| 29 | Not used | ||
| 30 | 5 AMINI | Parking aid module | |
| 31 | 5 AMINI | Rear view camera | |
| 32 | 5 AMINI | DC/AC power inverter | |
| 33 | Not used | ||
| 34 | 20 AMINI | Driver seat heater | |
| 35 | 20 AMINI | Passenger seat heater | |
| 36 | Not used | ||
| 37 | 20 AMINI | Power sunshade | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | Not used | ||
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | Not used | ||
| 45 | 5 AMINI | Humidity sensor | |
| 46 | 10 AMINI | Fuel system |

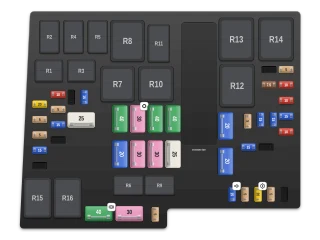

Engine compartment fuse box (European C-Max)
Engine bay fuse box of the 2016 C-Max: left front, beside the battery, lid held by two catches. Top-down view per Ford plate E129925.
Assignment for cars built from 23 June 2015: position 36 now carries the 5 A active grille shutter fuse and the relays are re-allocated. Relays from 23 June 2015 builds: R1 intercooler fan, R2 horn, R3 particulate filter vaporiser, R4, R8 and R12 cooling fan, R5 wiper on/off, R6 wiper speed, R7 heated windscreen, R9 headlamp washer, R10 starter, R11 A/C clutch, R13 blower, R14 engine control, R15 glow plugs, R16 ignition.
| No. | Function | Amp | Description |
|---|---|---|---|
| 7 | 40 AJCASE | ABS pump and electronic stability programme | |
| 8 | 30 AJCASE | Electronic stability programme valves | |
| 9 | 20 AJCASE | Headlamp washer pump | |
| 10 | 40 AJCASE | Blower motor | |
| 11 | 30 AJCASE | Auto-Start-Stop module | |
| 12 | 30 AJCASE | Powertrain control module | |
| 13 | 30 AJCASE | Starter relay | |
| 14 | 40 AJCASE | Heated windscreen, right-hand element | |
| 15 | 25 AJCASE | Intercooler fan on the 1.0L EcoBoost (25 A); cooling fan relay 1 on other engines (40 A) | |
| 16 | 40 AJCASE | Heated windscreen, left-hand element | |
| 17 | 20 AJCASE | Auxiliary heater | |
| 18 | 20 AJCASE | Windscreen wipers | |
| 19 | 5 AMINI | ABS and electronic stability programme module | |
| 20 | 15 AMINI | Horn | |
| 21 | 5 AMINI | Brake lamps | |
| 22 | 15 AMINI | Battery monitoring system | |
| 23 | 5 AMINI | Relay coils, lighting control | |
| 24 | 20 AMINI | Load space power point | |
| 25 | Not used | ||
| 26 | 15 AMINI | Transmission control module: 15 A with the MPS6 dual-clutch box, 25 A with the 6F35 automatic | |
| 27 | 15 AMINI | Air conditioning clutch | |
| 28 | 7.5 AMINI | Rear view camera, forward collision warning | |
| 29 | Not used | ||
| 30 | 5 AMINI | Powertrain control module | |
| 31 | Not used | ||
| 32 | 10 AMINI | Powertrain control module, cooling fan module relay | |
| 33 | 15 AMINI | Powertrain control module, ignition coils (20 A on the 1.0L EcoBoost) | |
| 34 | 10 AMINI | Powertrain control module | |
| 35 | 10 AMINI | Water-in-fuel sensor, powertrain control module, ignition coils | |
| 36 | 5 AMINI | Active grille shutter | |
| 37 | Not used | ||
| 38 | 15 AMINI | Powertrain control module | |
| 39 | 5 AMINI | Headlamp levelling | |
| 40 | 5 AMINI | Electric power assisted steering | |
| 41 | 20 AMINI | Body control module | |
| 42 | Not used | ||
| 43 | 15 AMINI | Headlamp levelling, adaptive front lighting | |
| 44 | 5 AMINI | Adaptive cruise control | |
| 45 | 10 AMINI | Heated washer jets | |
| 46 | 25 AJCASE | Cooling fan | |
| 47 | Not used | ||
| 48 | 15 AMINI | Diesel particulate filter vaporiser |

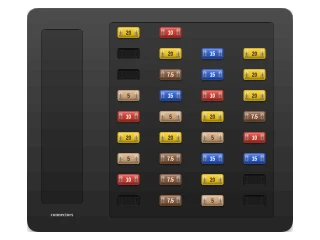

Passenger compartment fuse box (European C-Max)
2016 C-Max: open the glovebox trim panel below the dash on the passenger side (pinch the clips, lower, pull) to see the four fuse columns.
Facelift assignment from June 2015 builds: 88 and 89 are empty, 78 also feeds the keyless vehicle module, 86 the occupant classification sensor.
| No. | Function | Amp | Description |
|---|---|---|---|
| 56 | 20 AMINI | Fuel pump | |
| 57 | Not used | ||
| 58 | Not used | ||
| 59 | 5 AMINI | Passive anti-theft transceiver | |
| 60 | 10 AMINI | Interior lighting, driver door switch pack, glovebox lamp, ambient lighting | |
| 61 | 20 AMINI | Front cigar lighter, rear auxiliary power points | |
| 62 | 5 AMINI | Automatic wipers, humidity sensor, auto-dimming mirror | |
| 63 | 10 AMINI | Adaptive cruise control | |
| 64 | Not used | ||
| 65 | 10 AMINI | Tailgate release | |
| 66 | 20 AMINI | Driver door lock, fuel filler door lock, double locking | |
| 67 | 7.5 AMINI | SYNC module, GPS module, information display | |
| 68 | 15 AMINI | Electric steering column lock | |
| 69 | 5 AMINI | Instrument cluster | |
| 70 | 20 AMINI | Central locking | |
| 71 | 7.5 AMINI | Air conditioning | |
| 72 | 7.5 AMINI | Steering wheel module | |
| 73 | 7.5 AMINI | Data link connector, battery-backed alarm sounder | |
| 74 | 15 AMINI | High beam | |
| 75 | 15 AMINI | Front fog lamps | |
| 76 | 10 AMINI | Reversing lamps | |
| 77 | 20 AMINI | Front and rear washer pump | |
| 78 | 5 AMINI | Ignition switch, push-button start, keyless vehicle module | |
| 79 | 15 AMINI | Audio unit, hazard switch, electronic finish panel | |
| 80 | 20 AMINI | Sunroof | |
| 81 | 5 AMINI | Interior motion sensor, radio frequency receiver, sunshade | |
| 82 | 20 AMINI | Front and rear washer pump (ground side) | |
| 83 | 20 AMINI | Central locking (ground side) | |
| 84 | 20 AMINI | Driver door unlock, fuel filler door unlock, double locking | |
| 85 | 7.5 AMINI | Air conditioning, rear wiper relay, auxiliary heater, radio, adaptive cruise control | |
| 86 | 10 AMINI | Restraints control module, occupant classification sensor | |
| 87 | 15 AMINI | Heated steering wheel | |
| 88 | Not used | ||
| 89 | Not used |

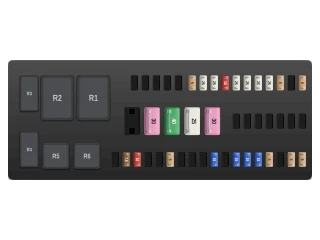

Load compartment fuse box (European C-Max)
2016 C-Max: remove the trim cover on the left side of the boot to reach the rear fuse box, numbered right to left per plate E129927.
Cars built from June 2015 add 41, a 5 A trailer tow module feed. Relays: R1 ignition, R2 heated rear window, R3 rear wiper, R5 alarm horn, R6 delayed accessory power; R4 empty.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 5 AMINI | Hands-free tailgate | |
| 2 | Not used | ||
| 3 | 5 AMINI | Keyless door handles | |
| 4 | 25 AMINI | Front left door control unit | |
| 5 | 25 AMINI | Front right door control unit | |
| 6 | 25 AMINI | Rear left door control unit | |
| 7 | 25 AMINI | Rear right door control unit | |
| 8 | 10 AMINI | Anti-theft alarm | |
| 9 | 25 AMINI | Driver seat | |
| 10 | 25 AMINI | Power windows | |
| 11 | 5 AMINI | Relay coil feed | |
| 12 | Not used | ||
| 13 | Not used | ||
| 14 | Not used | ||
| 15 | Not used | ||
| 16 | Not used | ||
| 17 | Not used | ||
| 18 | Not used | ||
| 19 | Not used | ||
| 20 | Not used | ||
| 21 | Not used | ||
| 22 | Not used | ||
| 23 | Not used | ||
| 24 | 30 AJCASE | DC/AC power inverter | |
| 25 | 25 AJCASE | Power tailgate | |
| 26 | 40 AJCASE | Trailer tow module | |
| 27 | 30 AJCASE | Heated rear window | |
| 28 | Not used | ||
| 29 | 5 AMINI | Blind spot monitor, lane keeping, Active City Stop, rear camera | |
| 30 | 5 AMINI | Parking aid module | |
| 31 | Not used | ||
| 32 | 5 AMINI | DC/AC power inverter | |
| 33 | 15 AMINI | Rear wiper relay | |
| 34 | 15 AMINI | Heated driver seat | |
| 35 | 15 AMINI | Heated passenger seat | |
| 36 | Not used | ||
| 37 | 15 AMINI | Sunshade | |
| 38 | Not used | ||
| 39 | Not used | ||
| 40 | Not used | ||
| 41 | 5 AMINI | Trailer tow module | |
| 42 | Not used | ||
| 43 | Not used | ||
| 44 | 10 AMINI | Power door mirrors | |
| 45 | 7.5 AMINI | Heated door mirrors | |
| 46 | Not used |
