2017 Chrysler 200 II Fuse Box Diagram

For 2017, the final model year of the second-generation 200 (Sterling Heights stopped building it in late 2016), the power distribution center has not moved: open the hood and look behind the battery on the driver's side. The 2017 manual keeps the ratings of the earlier editions for every cavity.

The left section holds most of the cabin feeds: heated seats F63 and heated steering wheel F64, cigar lighter F75, radio F80, the airbag controller feeds F96 and F97, the electric park brake cartridges F84 and F94 and the ABS pump cartridge F93, with the relays K8 to K13 and the three circuit breakers among them. The blades are mostly Micro 2; the longer three-legged bodies, such as F69 near the top and F100 in the bottom corner, are Micro 3 fuses.

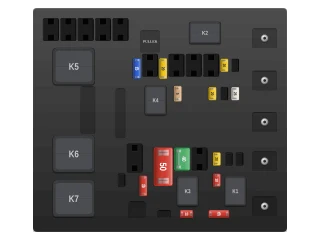

The 2017 200 keeps this right-hand half of the power distribution center unchanged, including the 2016 wording for F14 and F16. Open the cover behind the battery on the driver's side; these positions sit towards the fender.

Useful anchors: the starter solenoid cartridge F19 above relay K3, the transmission control module fuse F28 next to the fuse puller, F10 for the power transfer unit of AWD cars, the A/C clutch F20 on the bottom row and the engine control fuses F08, F13 and F30. Relays K5 to K7 are empty sockets on this car and the studs marked F1 to F5 hold no fuse. The longer bodies, F14 on the bottom row and F25, F28 and F30 standing on end, are Micro 3 fuses, each rated as a single fuse.

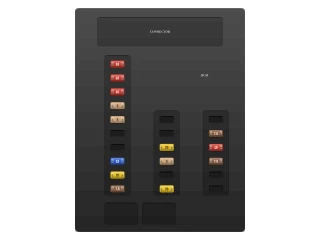

The 2017 Chrysler 200 carries its interior fuses on the body control module on the driver's side, below the instrument panel to the left of the steering column. The owner's manual calls it the interior fuse panel; the cover beneath the headlamp switch comes off to expose it.

A tall column of ten pockets on the left and two short columns of six on the right, read downwards. The 2017 edition, like the two before it, assigns fourteen pockets: lighting (low beams F13/F93, fog lamps F91/F92, trunk lamp F89, interior lamps F32), horns F48, locks F38, lumbar support F49 and the USB port F53.
