2016 Chrysler 200 II Fuse Box Diagram

The 2016 200 uses the same engine-compartment power distribution center: driver's side, directly behind the battery, under a latched cover with the cavity label printed inside. The 2016 owner's manual rates every position exactly as the 2015 edition did, so a fuse bought for a 2015 car fits and matches here.

Left part of the box: breakers CB1, CB2 and the power-window breaker CB3, relays K12 and K13 at the far left and K10, K11 in the middle, the micro-fuse block F75 to F92 near the bottom, then the cartridge column F44 to F54 and the big cartridges F37, F38 and F41 next to the blower relay K8. On cars with engine stop/start F41 carries 50 A for the voltage stability module instead of the 60 A body controller feed. In the bottom block the longer three-legged bodies F77 to F79, F87 and F92 are Micro 3 fuses; the rest are Micro 2 apart from the mini fuses F57 and F58.

On a 2016 200 this is the half of the engine-bay power distribution center closest to the fender, under the same cover behind the battery. Ratings are unchanged from 2015; the 2016 edition only rewrites two lines of the table, calling F16 the ignition-coil fuse and adding the electric park brake to the list on F14.

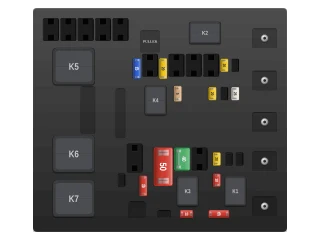

Shown: the unused cartridge sockets F27 to F35 along the top edge with the fuse puller and the ASD relay K2, the vertical micro fuses F28, F25, F10 and F07, the fuel-heater relay K4, three large unused relay sockets K5 to K7, the 70 A MAXI F23 beside the starter relays K3 and K1, and F24, F20 and F14 along the bottom. The studs F1 to F5 on the right-hand strip take no fuse. F14, F25, F28 and F30 are three-legged Micro 3 fuses, F22 is a mini fuse and the other blades are Micro 2.

On the 2016 200 the cabin fuses sit on the face of the body control module behind the lower left dash panel, under the headlamp switch. Take the cover off to reach them; the module's 22 pockets are arranged the same way as in 2015 and the 2016 manual lists the same fourteen fuses with the same ratings.

Left column, top to bottom: F36, F32, F93, F92, F91, F90, F12, F13, F43, F53. Middle column from F33 down to F38 and right column from F31 down to F42 start opposite F91. The low-beam fuses are F13 (left) and F93 (right); the washer pump is F43.
