2014 Opel Zafira B Fuse Box Diagram

Final-year Zafira B / Zafira Family (handbook editions August 2013 and January 2014, 'Model Year 2014.5' – the Zafira Tourer is a different car with different boxes). The fuse box is at the front left of the engine bay beside the battery under a lid: insert a screwdriver into the opening as far as it will go, tilt it to the side, open the lid upwards and remove it. Use this assignment when the car has the Rear Electrical Centre in the boot; cars without it follow layout A.

Harness lid top left, then: cartridges 1 2 3 in the top right corner, 4 on the right edge beneath them; across the middle 5 and 6 (cartridges, left), 7 above 8, cartridge 9 followed by the seven small fuses 10–16, and cartridge 17 on the right under K8; across the bottom 18, 19, the flat fuse 20 and cartridge 21, then the block of twelve – 22–27 upper row, 28–33 lower row – and 34 35 36 to its right.

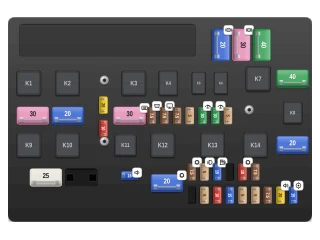

Last-year Zafira B / Zafira Family cars without the Rear Electrical Centre – recognisable by the eight capped fuses on a short rail behind the left boot trim – use layout A in the engine-compartment box. The box is front left of the engine bay beside the battery: insert a screwdriver into the lid opening as far as it will go, tilt it sideways, open the lid upwards and remove it.

Position by position the housing matches the version-B drawing (1–3 and 4 top right, 5–6, 7/8, 9 and 10–16 in the middle band, 17 right, 18–21 along the bottom, 22–33 in the two-row block, 34–36 next to it). The assignment differs at 7–13, 16, 17, 19, 20, 23, 25, 27–29, 31–33 and 36 – the Astra-family circuits that the REC would otherwise carry sit here – and sockets 19, 25 and 28 have no fuse.

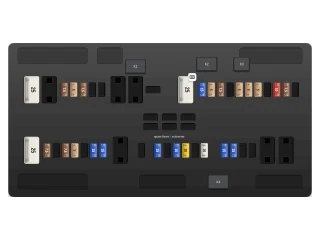

Last model year of the Zafira B / Zafira Family (editions August 2013 and January 2014). The Rear Electrical Centre – fuse box version B – is behind the cover in the left-hand side of the load compartment; push the locking tabs forward and remove the cover. From the August 2013 edition position 16 is listed as the Open&Start feed alone, the only wording change in the box over the whole run; a Zafira Tourer's boxes are different.

Upper row from left to right: cartridge 1, unused cartridge socket 2, fuses 3–7, unused sockets 8 and 9, the flat fuse 10, cartridge 11, then 12–22. Lower row from left to right: cartridge 23, fuses 24–30, unused socket 31, 32, fuses 33–38, fuses 39–42, unused sockets 43 and 44. Three relays (K1–K3) are along the top, K4 at the bottom, and the six spare-fuse pockets and the extractor sit between the rows.
