2014 Mercedes-Benz Sprinter W906 Fuse Box Diagram

The 2014 Mercedes-Benz Sprinter (W906) has 3 fuse boxes. Choose the one you’re looking at.

Find a fuse

Search by component, fuse number or description.

Popular searches

Main fuse box in the driver's footwell (SRB)

The facelift (Mercedes code XM0, on sale from autumn 2013) kept the footwell fuse box exactly where the 2006 van had it: driver's side, left-hand kick panel, one quick-release fastener on the cover. What changed is the engine wiring — fuse 6 now feeds terminal 87 (5), fuse 23 terminal 87 (6), and relay R3 is the terminal 15 starter relay.

Fuses 1–25 are the three columns on the right, each counted from the bottom upwards (1–7, 8–15, 16–24) with the MAXI 25 below the first column; relays R1–R8 sit on the left. Drawn from the MY2015 fuse allocation supplement, the first facelift edition.

R1R3R5R7R2R4R6R87 → 115 → 824 → 16F1 – F25K40/9 relays15151512525252101010355543030305101010655572020208202020910101010151515111010101215151513555145551510101016101010177.57.57.5187.57.57.519252525205552155522101010231010102425252525
No.FunctionAmpDescription
115 AATOHorn
225 AATOElectric steering lock (ESTL), ignition lock
310 AATOTerminal 30 Z (petrol engine), ignition lock, instrument cluster
45 AATOLight switch, centre console switch unit
530 AATOWindscreen wipers
610 AATOEngine supply, terminal 87 (5) on facelift vehicles (code XM0); fuel pump 15 A on vehicles without codes MI6/MH3/XM0
75 AATOSteering column module (MRM)
820 AATOEngine supply, terminal 87 (2)
920 AATOEngine supply, terminal 87 (1) 25 A; terminal 87 (3) 20 A with a petrol engine, 25 A with a diesel engine
1010 AATOEngine supply, terminal 87 (4)
1115 AATOTerminal 15 R, vehicle
1210 AATOAirbag control unit
1315 AATOCigarette lighter, glove box lamp, radio, body-manufacturer loading tailgate, PND power socket
145 AATODiagnostics connection, light switch, instrument cluster, reverse warning cut-out, vehicle tracking
155 AATOHeadlamp range control, front-compartment heating
1610 AATOEngine supply, terminal 87 (3) on facelift vehicles (code XM0); terminal 87 (1) otherwise
1710 AATOAirbag control unit
187.5 AATOTerminal 15 vehicle, brake lamp switch
197.5 AATOInterior lights
2025 AATOCo-driver's power window switch, terminal 30/2 of the SAM control unit
215 AATOEngine control unit
225 AATOAnti-lock braking system (ABS)
2310 AATOTerminal 87 (6) on facelift vehicles (codes MI6/MH3/XM0); starter motor 20 A otherwise
2410 AATODiesel engine components; control unit on natural-gas (NGT) engines
2525 AMAXI12 V socket in the centre console (tyre sealant compressor)

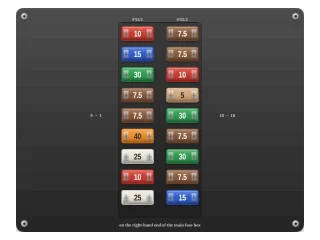

Fuse blocks F55/1 and F55/2 on the main fuse box

Fuse blocks F55/1 (1–9) and F55/2 (10–18) hang on the outer end of the main fuse box and restart the count at 1. On facelift vans fuse 6 becomes terminal 87 (1a) and fuse 11 also feeds the navigation cradle; everything else carries over from the pre-facelift table.

Both columns read downwards: 9 at the top of F55/1 down to 1, 18 at the top of F55/2 down to 10.

F55/1F55/29 → 118 → 10on the right-hand end of the main fuse box25252511010102252525340404047.57.57.557.57.57.56303030715151581010109151515107.57.57.511303030127.57.57.5133030301455515101010167.57.57.5177.57.57.518
No.FunctionAmpDescription
125 AATODriver's door control unit
210 AATODiagnostics connection
325 AATOBrake system, valves
440 AATOBrake system, delivery pump
57.5 AATOEngine supply, terminal 87 (2a): 7.5 A (M272, OM651) or 10 A (OM642 and NAFTA OM651)
67.5 AATOEngine supply, terminal 87 (1a) 7.5 A (OM651) or 10 A (OM642) on facelift vehicles; terminal 87 (3a) 7.5 A otherwise
730 AATOHeadlamp cleaning system
815 AATOAnti-theft alarm system (ATA), beacon, beacon with siren
910 AATOAdditional turn-signal module
1015 AATORadio: 15 A single-DIN, 20 A double-DIN
117.5 AATOMobile phone, tachograph, additional recorder (Latin America), navigation cradle (facelift)
1230 AATOFront blower; auxiliary heating blower, setting 1
137.5 AATOAuxiliary heating digital timer, radio receiver, DIN-slot basic wiring, FleetBoard, vehicle tracking
1430 AATOSeat heating
155 AATOBrake system control unit
1610 AATOHeating, rear-compartment heating, front air conditioning, CD player
177.5 AATOConvenience lighting 10 A; motion detector 7.5 A; courier-vehicle reading and cargo lamps 10 A; cargo compartment lighting 7.5 A
187.5 AATORear-compartment air conditioning

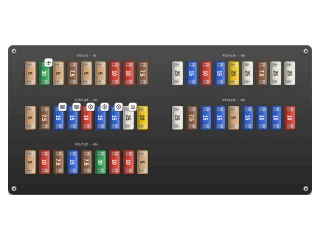

Fuse box under the driver's seat

The 2013 facelift filled the fifth block of the seat-base fuse box: 37 now protects COLLISION PREVENTION ASSIST and Blind Spot Assist, 38 the multifunction camera, 40 and 41 the auxiliary battery circuits. The box itself is unchanged — outboard side of the driver's seat base, seat fully up, two latching springs, cover off.

Five blocks of nine, all numbered left to right: F55/3 (1–9) and F55/4 (10–18) top, F55/5 (19–27) and F55/6 (28–36) middle, F55/7 (37–45) bottom left. Ratings follow the MY2015 supplement, edition 07-14.

F55/3 (1 → 9)F55/4 (10 → 18)F55/5 (19 → 27)F55/6 (28 → 36)F55/7 (37 → 45)5551303030255537.57.57.5455555556101010710101087.57.57.592525251015151511101010121515151320202014252525157.57.57.5162525251725252518555197.57.57.52015151521151515221010102315151524151515252525252620202027252525287.57.57.5291515153015151531555321515153315151534151515351010103655537101010387.57.57.539151515407.57.57.54130303042101010431010104455545
No.FunctionAmpDescription
15 AATOMirror setting, rear window defroster
230 AATORear window wiper
35 AATOAuxiliary heating timer, rear-view camera, neutral gate switch (starting-off aid, all-wheel drive, engine run-on), roof DIN slot, FleetBoard, vehicle tracking, emergency hammer light
47.5 AATOTachograph, working speed governor (ADR), power take-off, trailer control unit (AAG)
55 AATOECO start function 5 A; electronic gearbox control (EGS) 10 A
65 AATOAll-wheel-drive control unit 5 A; auxiliary oil pump 10 A
710 AATOElectronic selector lever module (ESM)
810 AATOLoading tailgate, tipper; PARKTRONIC on facelift vehicles
97.5 AATORear-compartment air conditioning compressor clutch, switchable reverse warning device
1025 AATOTerminal 30, body/equipment manufacturer
1115 AATOTerminal 15, body/equipment manufacturer
1210 AATOD+, body/equipment manufacturer
1315 AATOFuel pump FSCM 20 A; fuel pump relay 15 A on NAFTA facelift vehicles (codes MI6/MH3/XM0)
1420 AATOTrailer socket
1525 AATOTrailer recognition unit
167.5 AATOTyre pressure monitor; PARKTRONIC on pre-facelift vehicles
1725 AATOParameterisable special module (PSM) control unit
1825 AATOParameterisable special module (PSM) control unit
195 AATOOverhead control panel 5 A; 25 A with anti-theft alarm (ATA) or rain sensor
207.5 AATOLicence plate lamp (courier vehicles); perimeter and identification lamps (NAFTA)
2115 AATOTerminal 30 body electrics (courier vehicles) 15 A; rear window defroster 30 A, 15 A with anti-theft alarm
2215 AATORear window defroster 2 15 A; vehicle socket (courier vehicles) 20 A
2310 AATONon-Mercedes body electrics 10 A; 12 V socket rear left, load or rear compartment 15 A
2415 AATO12 V socket in the driver's seat base
2515 AATO12 V socket rear right, load or rear compartment
2625 AATOHot-water auxiliary heating
2720 AATOAuxiliary warm-air heater 20 A; electric PTC heater booster 25 A
2825 AATOStarter relay of the SRB module (NAFTA facelift); starter supply support from the additional battery
297.5 AATOTerminal 87 (7) gas system (NGT) 7.5 A; SCR control unit (NAFTA) 10 A; terminal 30 all-wheel-drive control unit 30 A
3015 AATOAuxiliary heat exchanger fan 15 A; brake booster (NAFTA) 30 A
3115 AATORear-compartment heating blower 30 A; sliding door closing assistance, left, 15 A; electric sliding door, left, 30 A
325 AATOSCR relay supply 5 A; KEYLESS ENTRY 10 A
3315 AATOElectric sliding door, right, 30 A; closing assistance, right, 15 A; level control (ENR) unit 30 A; air suspension compressor 30 A
3415 AATOSCR heater 3, DEF supply reservoir, 6-cyl. diesel (code MH3) 15 A; SCR heater 1 DEF 20 A on other diesels
3515 AATOSCR heater 2, DEF hose, 6-cyl. diesel (code MH3) 15 A; SCR heater 2 DEF 25 A on other diesels
3610 AATOSCR heater 1, DEF delivery pump, 6-cyl. diesel (code MH3) 10 A; SCR heater control 3 DEF 15 A on other diesels
375 AATOCOLLISION PREVENTION ASSIST, forward collision warning (FCW); Blind Spot Assist (BSM)
3810 AATOMultifunction camera: Highbeam Assist, lane departure warning
397.5 AATOBody electrics (courier vehicles), rear-compartment air conditioning 7.5 A; roof ventilator, siren 15 A
4015 AATOAuxiliary battery charge current (vehicles with an auxiliary battery)
417.5 AATOSAM control unit, auxiliary battery reference voltage (vehicles with an auxiliary battery)
4230 AATORear-compartment air conditioning
4310 AATOElectric step, sliding door right
4410 AATOElectric step, sliding door left
455 AATOElectric step control system and warning buzzer
