2013 Mercedes-Benz Sprinter W906 Fuse Box Diagram

The 2013 Mercedes-Benz Sprinter (W906) has 3 fuse boxes. Choose the one you’re looking at.

Find a fuse

Search by component, fuse number or description.

Popular searches

Main fuse box in the driver's footwell (SRB)

For the final pre-facelift year the main fuse box stays where it has always been: in the driver's footwell on the left-hand side, behind a cover with a single quick-release fastener. The fuse allocation supplement dated 26 February 2013 (part 906 584 29 02) documents it with plate N54.15-2186-31.

The 25 fuses form three columns on the right-hand end of the module, each numbered from the bottom: 1–7, 8–15 (this column starts one row lower) and 16–24, with MAXI fuse 25 underneath column 1–7. The eight K40/9 relays R1–R8 fill the left of the housing; on the US EPA13 engines R3 is the terminal 15 starter relay rather than the fuel pump relay.

R1R3R5R7R2R4R6R87 → 115 → 824 → 16F1 – F25K40/9 relays15151512525252101010355543030305151515655572020208202020910101010151515111010101215151513555145551510101016101010177.57.57.5187.57.57.519252525205552155522202020231010102425252525
No.FunctionAmpDescription
115 AATOHorn
225 AATOElectric steering lock (ESTL), ignition lock
310 AATOTerminal 30 Z (petrol engine), ignition lock, instrument cluster
45 AATOLight switch, centre console switch unit
530 AATOWindscreen wipers
615 AATOFuel pump; 10 A terminal 87 (5) engine supply on EPA13 engines (code MH3, the US MY2013 table)
75 AATOSteering column module (MRM)
820 AATOEngine supply, terminal 87 (2)
920 AATOEngine supply, terminal 87 (3): 20 A petrol, 25 A diesel; terminal 87 (1) 25 A on code MH3 engines
1010 AATOEngine supply, terminal 87 (4)
1115 AATOTerminal 15 R, vehicle
1210 AATOAirbag control unit
1315 AATOCigarette lighter, glove box lamp, radio, body-manufacturer loading tailgate, PND power socket
145 AATODiagnostics connection, light switch, instrument cluster, reverse warning cut-out, vehicle tracking
155 AATOHeadlamp range control, front-compartment heating
1610 AATOEngine supply, terminal 87 (1); terminal 87 (3) on code MH3 engines
1710 AATOAirbag control unit
187.5 AATOTerminal 15 vehicle, brake lamp switch
197.5 AATOInterior lights
2025 AATOCo-driver's power window switch, terminal 30/2 of the SAM control unit
215 AATOEngine control unit
225 AATOAnti-lock braking system (ABS)
2320 AATOStarter motor; 10 A terminal 87 (6) on code MH3 engines (US MY2013 table)
2410 AATODiesel engine components; control unit on natural-gas (NGT) engines
2525 AMAXI12 V socket in the centre console

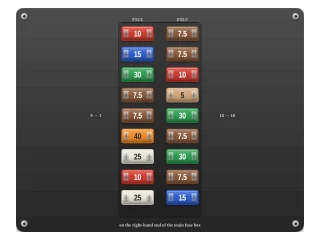

Fuse blocks F55/1 and F55/2 on the main fuse box

Beside the F1–F25 columns, on the outer end of the SRB module, sit fuse blocks F55/1 and F55/2 with their own 1–18 count. The 2013 supplement prints 10 A at both engine fuses 5 and 6 for the US EPA13 engines; European vans keep the 7.5 A values of the 2012 edition, noted per fuse.

Each column is read from top to bottom — F55/1 as 9, 8 … 1 and F55/2 as 18, 17 … 10.

F55/1F55/29 → 118 → 10on the right-hand end of the main fuse box25252511010102252525340404047.57.57.557.57.57.56303030715151581010109151515107.57.57.511303030127.57.57.5133030301455515101010167.57.57.5177.57.57.518
No.FunctionAmpDescription
125 AATODriver's door control unit
210 AATODiagnostics connection
325 AATOBrake system, valves
440 AATOBrake system, delivery pump
57.5 AATOEngine supply, terminal 87 (2a): 7.5 A (M272, OM651) or 10 A (OM642; code MH3 engines)
67.5 AATOEngine supply, terminal 87 (3a) 7.5 A; terminal 87 (1a) 10 A on code MH3 engines
730 AATOHeadlamp cleaning system
815 AATOAnti-theft alarm system (ATA), beacon, beacon with siren
910 AATOAdditional turn-signal module
1015 AATORadio 15 A; Radio NTG 2.5 20 A
117.5 AATOMobile phone, tachograph, additional recorder
1230 AATOFront blower; auxiliary heating blower, speed 1
137.5 AATOAuxiliary heating digital timer, radio receiver, DIN-slot basic wiring, FleetBoard, vehicle tracking
1430 AATOSeat heating
155 AATOBrake system control unit
1610 AATOHeating, rear-compartment heating, front air conditioning, CD player
177.5 AATOMotion detector, reading lamps or LED light strip 7.5 A; convenience lighting, courier-vehicle cargo lamps 10 A
187.5 AATORear-compartment air conditioning

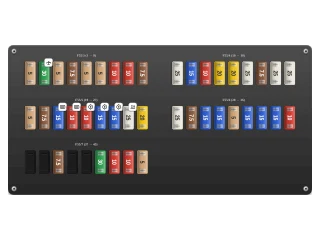

Fuse box under the driver's seat

A 2013 Sprinter built before the September 2013 facelift has the five-block seat-base fuse box shown on plate N54.15-2241-31 of the February 2013 supplement. Access is unchanged: driver's seat fully raised, both latching springs pressed down, cover lifted off the outboard side of the seat base.

The blocks are numbered left to right and top to bottom: F55/3 with 1–9 next to F55/4 with 10–18, then F55/5 (19–27) next to F55/6 (28–36), and F55/7 (37–45) alone on the bottom row. Fuse 28 rises to 25 A in this edition; 37, 38, 40 and 41 are still empty.

F55/3 (1 → 9)F55/4 (10 → 18)F55/5 (19 → 27)F55/6 (28 → 36)F55/7 (37 → 45)5551303030255537.57.57.5455555556101010710101087.57.57.592525251015151511101010122020201320202014252525157.57.57.5162525251725252518555197.57.57.52015151521101010221010102315151524151515252525252620202027252525287.57.57.5291515153015151531555321515153315151534151515351010103637387.57.57.539404130303042101010431010104455545
No.FunctionAmpDescription
15 AATOMirror setting, rear window defroster
230 AATORear window wiper
35 AATOAuxiliary heating timer, rear-view camera, neutral gate switch (starting-off aid, all-wheel drive, engine run-on), roof DIN slot, FleetBoard, vehicle tracking, emergency hammer light
47.5 AATOTachograph, working speed governor (ADR), power take-off, trailer control unit (AAG)
55 AATOECO start function 5 A; electronic gearbox control (EGS) 10 A
65 AATOAll-wheel-drive control unit
710 AATOElectronic selector lever module (ESM)
810 AATOLoading tailgate, tipper (the MY2012 edition also lists passenger compartment emergency lighting at 5 A)
97.5 AATOPassenger compartment air conditioning, compressor clutch
1025 AATOTerminal 30, body/equipment manufacturer
1115 AATOTerminal 15, body/equipment manufacturer
1210 AATOD+, body/equipment manufacturer
1320 AATOFuel pump, fuel sensing control module (FSCM); 15 A fuel pump relay on code MH3 engines
1420 AATOTrailer socket
1525 AATOTrailer recognition unit
167.5 AATOTyre pressure monitor, PARKTRONIC
1725 AATOParameterisable special module (PSM) control unit
1825 AATOParameterisable special module (PSM) control unit
195 AATOOverhead control panel 5 A; 25 A with anti-theft alarm (ATA) or rain sensor
207.5 AATOLicence plate lamp (courier vehicles), perimeter lamp, entrance lighting (bus)
2115 AATOTerminal 30 body electrics (courier vehicles) 15 A; rear window defroster 30 A, 15 A with anti-theft alarm
2210 AATOElectric step at the co-driver's door (bus) 10 A; rear window defroster 2 15 A; vehicle socket (courier vehicles) 20 A
2310 AATONon-Mercedes body electrics 10 A; 12 V socket rear left, cargo or passenger compartment 15 A
2415 AATO12 V socket in the driver's seat base
2515 AATO12 V socket rear right, load or passenger compartment
2625 AATOHot-water auxiliary heating
2720 AATOAuxiliary warm-air heater 20 A; heater booster system 25 A
2825 AATOStarter with the auxiliary battery, starter relay power supply
297.5 AATOTerminal 87 (7) gas system (NGT) 7.5 A; SCR control module 10 A; terminal 30 all-wheel-drive control module 30 A
3015 AATOAuxiliary heat exchanger fan 15 A; brake booster 30 A
3115 AATOSliding door closing assistance, left, 15 A; electric sliding door, left, 30 A; rear-compartment heating blower 30 A
325 AATOSCR relay supply 5 A; KEYLESS ENTRY 10 A
3315 AATOSliding door closing assistance, right, 15 A; electric sliding door, right, 30 A; air suspension compressor 30 A
3415 AATOSCR heater 1, DEF supply reservoir
3515 AATOSCR heater 2, DEF hose
3610 AATOSCR heater 3, DEF delivery pump
37Unassigned
38Unassigned
397.5 AATOBody electrics (courier vehicles), passenger compartment air conditioning 7.5 A; roof ventilator, siren 15 A
40Unassigned
41Unassigned
4230 AATORear-compartment air conditioning
4310 AATOElectric step, sliding door right
4410 AATOElectric step, sliding door left
455 AATOElectric step control system
