2019 Chrysler 300 LD Fuse Box Diagram
The 2019 Chrysler 300 (LD) has 2 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box (front PDC)
Look for the 2019 300's front fuse box on the passenger side of the engine bay, at the front corner next to the remote battery posts (the battery is under the trunk floor). The latched lid comes off by hand and carries the cavity map on its inside face.
New for 2019: mini 36 also protects the steering-column lock module on cars that have one, next to the anti-lock brake module. The rest follows 2018 — cartridges 2–6 and 18–21 for the high-current loads, 15/16 for HID headlamps and 52 for adaptive cruise.
| No. | Function | Amp | Description |
|---|---|---|---|
| 2 | 40 AJCASE | Radiator cooling fan #1 | |
| 3 | 50 AJCASE | Electric power steering #1 (where fitted) | |
| 4 | 30 AJCASE | Starter motor | |
| 5 | 40 AJCASE | Anti-lock brakes | |
| 6 | 30 AJCASE | Anti-lock brakes, second feed | |
| 7 | Not used on the 300: the shared table lists police ignition-run/accessory feed #1 (20 A) | ||
| 8 | Not used on the 300: the shared table lists police accessory feed #2 (20 A) or the 6.2 l supercharged fan (50 A) | ||
| 9 | 20 AMINI | All-wheel-drive module (AWD cars) | |
| 10 | 10 AMINI | Intrusion sensor module (where fitted) | |
| 11 | 20 AMINI | Horns | |
| 12 | 10 AMINI | Air-conditioning compressor clutch | |
| 13 | Spare | ||
| 14 | Spare | ||
| 15 | 20 AMINI | Left HID headlamp (where fitted) | |
| 16 | 20 AMINI | Right HID headlamp (where fitted) | |
| 18 | 50 AJCASE | Radiator cooling fan | |
| 19 | 50 AJCASE | Electric power steering #2 (where fitted) | |
| 20 | 30 AJCASE | Windshield wiper motor | |
| 21 | 30 AJCASE | Headlamp washers (where fitted) | |
| 22 | Not used on the 300: the shared table lists 6.2 l supercharged coolant pump (40 A) or police battery feed #3 (20 A) | ||
| 23 | Not used on the 300: the shared table lists police battery feed #1 (20 A) | ||
| 24 | Not used on the 300: the shared table lists police feed #3 (20 A) or the 6.2 l supercharged fan (50 A) | ||
| 28 | Spare | ||
| 29 | Not used on the 300: the shared table lists Challenger and police transmission feed (15 A); the 300 feeds its transmission from trunk cavity 26 | ||
| 30 | Spare | ||
| 31 | 25 AMINI | Engine control module | |
| 32 | Spare | ||
| 33 | Spare | ||
| 34 | 25 AMINI | Powertrain feed #1 | |
| 35 | 20 AMINI | Powertrain feed #2 | |
| 36 | 10 AMINI | Anti-lock brake module, steering column lock (where fitted) | |
| 37 | 10 AMINI | Engine controller, radiator fan relays, electric power steering module | |
| 38 | 10 AMINI | Airbag module | |
| 39 | 10 AMINI | A/C clutch relay, vacuum pump relay | |
| 48 | 10 AMINI | AWD module, front axle disconnect (AWD cars) | |
| 49 | Spare | ||
| 50 | Spare | ||
| 51 | 20 AMINI | Vacuum pump | |
| 52 | 5 AMINI | Adaptive cruise control radar (where fitted) | |
| 53 | Spare |

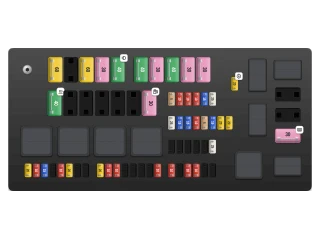

Trunk fuse box (rear PDC)
Under the trunk floor of the 2019 300, right of the battery, sits the rear power distribution center. Lift the spare-tire cover, release the lid latches and the fuses are exposed, cartridges down one side and mini fuses in rows beside the relays.
The 2019 table follows 2018; the fuel-filler-door fuse (23) is now marked where fitted. The 300's own fuel pump stays on cartridge 21 at 30 A and the transmission module on 26.
| No. | Function | Amp | Description |
|---|---|---|---|
| 2 | 60 AJCASE | Feed #1 to the engine-compartment fuse box (the battery lives in the trunk) | |
| 3 | Spare | ||
| 4 | 60 AJCASE | Feed #2 to the engine-compartment fuse box | |
| 5 | 30 AJCASE | Power sunroof (where fitted) | |
| 6 | 40 AJCASE | Exterior lighting #1 | |
| 7 | 40 AJCASE | Exterior lighting #2 | |
| 8 | 30 AJCASE | Interior lighting | |
| 9 | 40 AJCASE | Power door locks | |
| 10 | 30 AJCASE | Driver door module | |
| 11 | 30 AJCASE | Passenger door module | |
| 12 | 20 AMINI | Instrument-panel cigar lighter, rear-console dual USB ports (where fitted) | |
| 15 | 40 AJCASE | HVAC blower motor | |
| 16 | Not used on the 300: the shared table lists police left spotlight (20 A) | ||
| 17 | Not used on the 300: the shared table lists police right spotlight (20 A) | ||
| 18 | Not used on the 300: the shared table lists police network interface module (30 A) | ||
| 19 | Spare | ||
| 20 | Spare | ||
| 21 | 30 AJCASE | Fuel pump | |
| 22 | 5 AMINI | Cyber security gateway module | |
| 23 | 10 AMINI | Fuel filler door (where fitted), diagnostic port | |
| 24 | 10 AMINI | Integrated centre stack (radio and climate controls) | |
| 25 | 10 AMINI | Tyre pressure monitoring | |
| 26 | 15 AMINI | Transmission control module, electronic shifter | |
| 27 | 25 AMINI | Audio amplifier (where fitted) | |
| 31 | 25 AMINI | Power seats (where fitted): a 25 A circuit breaker | |
| 32 | 15 AMINI | HVAC module, instrument cluster | |
| 33 | 15 AMINI | Ignition switch, RF hub, steering column lock (where fitted) | |
| 34 | 10 AMINI | Steering column module, clock | |
| 35 | 5 AMINI | Intelligent battery sensor | |
| 36 | 15 AMINI | Electronic exhaust valve (where fitted) | |
| 37 | 20 AMINI | Radio | |
| 38 | 20 AMINI | Armrest power outlet, console media hub | |
| 40 | Not used on the 300: the shared table lists 6.2 l SRT fuel pump (30 A) | ||
| 41 | Not used on the 300: the shared table lists 6.2 l SRT fuel pump (30 A) | ||
| 42 | 30 AJCASE | Rear window defroster | |
| 43 | 20 AMINI | Comfort module: heated steering wheel, rear heated seats | |
| 44 | 10 AMINI | Park assist, blind-spot monitoring, rear camera | |
| 45 | 15 AMINI | Instrument cluster, mirror, compass, humidity sensor, lane camera, security gateway | |
| 46 | Spare | ||
| 47 | 10 AMINI | Adaptive front lighting, daytime running lamps (where fitted) | |
| 48 | 20 AMINI | Active damping suspension (where fitted) | |
| 49 | Spare | ||
| 50 | Spare | ||
| 51 | 20 AMINI | Front heated and ventilated seats (where fitted) | |
| 52 | 10 AMINI | Heated cupholders, rear heated-seat switches | |
| 53 | 10 AMINI | HVAC module, cabin temperature sensor | |
| 54 | Spare | ||
| 55 | Spare | ||
| 56 | Spare | ||
| 57 | Spare | ||
| 58 | 10 AMINI | Airbag module | |
| 59 | Not used on the 300: the shared table lists police adjustable pedals (20 A) | ||
| 60 | Spare | ||
| 61 | Spare | ||
| 62 | Spare | ||
| 63 | Spare | ||
| 64 | 25 AMINI | Rear power windows: a 25 A circuit breaker | |
| 65 | 10 AMINI | Airbag module, second feed | |
| 66 | Spare | ||
| 67 | 10 AMINI | Rain and light sensor, sunroof, inside mirror | |
| 68 | 10 AMINI | Dual USB run/accessory sense, rear sunshade, rear USB timer | |
| 69 | Spare | ||
| 70 | Spare |
