2016 Chrysler 300 LD Fuse Box Diagram
The 2016 Chrysler 300 (LD) has 2 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box (front PDC)
For 2016 the Front Power Distribution Center is unchanged in position: passenger side, ahead of the strut tower, with the jump-start posts beside it because the 300's battery rides in the trunk. Lift the latched lid to reach the fuses; the cavity numbers are moulded on the lid's underside and match this drawing.
The 2016 table renames 3 and 19 to electric power steering (where fitted) and adds the power-steering module and fuel-pump relay to cavity 37; 39 now covers the A/C clutch and vacuum-pump relays. HID headlamps stay on 15/16 and adaptive cruise on 52, while 7, 8, 22–24 and 29 remain non-300 positions.
| No. | Function | Amp | Description |
|---|---|---|---|
| 2 | 40 AJCASE | Radiator cooling fan #1 | |
| 3 | 50 AJCASE | Electric power steering #1 (where fitted) | |
| 4 | 30 AJCASE | Starter motor | |
| 5 | 40 AJCASE | Electronic stability control (ABS/ESC unit) | |
| 6 | 30 AJCASE | Electronic stability control, second feed | |
| 7 | Not used on the 300: the shared table lists police ignition-run/accessory feed #1 (20 A) | ||
| 8 | Not used on the 300: the shared table lists police ignition-run/accessory feed #2 (20 A) | ||
| 9 | 20 AMINI | All-wheel-drive module (AWD cars) | |
| 10 | 10 AMINI | Security system (where fitted) | |
| 11 | 20 AMINI | Horns | |
| 12 | 10 AMINI | Air-conditioning compressor clutch | |
| 13 | Spare | ||
| 14 | Spare | ||
| 15 | 20 AMINI | Left HID headlamp (where fitted) | |
| 16 | 20 AMINI | Right HID headlamp (where fitted) | |
| 18 | 50 AJCASE | Radiator cooling fan #2 | |
| 19 | 50 AJCASE | Electric power steering #2 (where fitted) | |
| 20 | 30 AJCASE | Windshield wiper motor | |
| 21 | 30 AJCASE | Headlamp washers (where fitted) | |
| 22 | Not used on the 300: the shared table lists 6.2 l supercharged coolant pump (40 A) or police battery feed #3 (20 A) | ||
| 23 | Not used on the 300: the shared table lists police battery feed #1 (20 A) | ||
| 24 | Not used on the 300: the shared table lists police feed #3 (20 A) | ||
| 28 | Spare | ||
| 29 | Not used on the 300: the shared table lists Challenger and police transmission feed (15 A); the 300 feeds its transmission from trunk cavity 26 | ||
| 30 | Spare | ||
| 31 | 25 AMINI | Engine control module | |
| 32 | Spare | ||
| 33 | Spare | ||
| 34 | 25 AMINI | Powertrain feed #1 | |
| 35 | 20 AMINI | Powertrain feed #2 | |
| 36 | 10 AMINI | Anti-lock brake module | |
| 37 | 10 AMINI | Engine controller, radiator fan relays, electric power steering module, fuel pump relay | |
| 38 | 10 AMINI | Airbag module | |
| 39 | 10 AMINI | A/C clutch relay, vacuum pump relay | |
| 48 | 10 AMINI | AWD module, front axle disconnect (AWD cars) | |
| 49 | Spare | ||
| 50 | Spare | ||
| 51 | 20 AMINI | Vacuum pump | |
| 52 | 5 AMINI | Adaptive cruise control radar (where fitted) | |
| 53 | Spare |

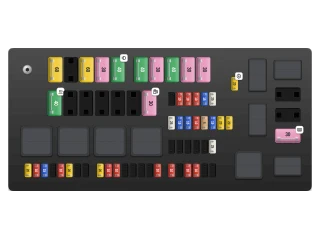

Trunk fuse box (rear PDC)
Lift the trunk floor of a 2016 300 and the rear fuse box is on the right, next to the battery and in front of the spare wheel. The cover unlatches by hand; its label numbers the cartridges along the left and the mini fuses in rows through the middle.
In 2016 the fuel-pump cartridge 21 is rated 30 A, the integrated centre stack fuse (24) drops to 10 A and the armrest outlet and media hub (38) return to 20 A. The Charger's heated washer nozzles still appear on 60; a 300 leaves it empty.
| No. | Function | Amp | Description |
|---|---|---|---|
| 2 | 60 AJCASE | Feed #1 to the engine-compartment fuse box (the battery lives in the trunk) | |
| 3 | Spare | ||
| 4 | 60 AJCASE | Feed #2 to the engine-compartment fuse box | |
| 5 | 30 AJCASE | Power sunroof (where fitted) | |
| 6 | 40 AJCASE | Exterior lighting #1 | |
| 7 | 40 AJCASE | Exterior lighting #2 | |
| 8 | 30 AJCASE | Interior lighting | |
| 9 | 40 AJCASE | Power door locks | |
| 10 | 30 AJCASE | Driver door module | |
| 11 | 30 AJCASE | Passenger door module | |
| 12 | 20 AMINI | Instrument-panel cigar lighter, rear-console dual USB ports (where fitted) | |
| 15 | 40 AJCASE | HVAC blower motor | |
| 16 | Not used on the 300: the shared table lists police left spotlight (20 A) | ||
| 17 | Spare | ||
| 18 | Not used on the 300: the shared table lists police network interface module (30 A) | ||
| 19 | Spare | ||
| 20 | Spare | ||
| 21 | 30 AJCASE | Fuel pump | |
| 22 | Not used on the 300: the shared table lists police right spotlight (20 A) | ||
| 23 | 10 AMINI | Fuel filler door, diagnostic port | |
| 24 | 10 AMINI | Integrated centre stack (radio and climate controls) | |
| 25 | 10 AMINI | Tyre pressure monitoring | |
| 26 | 15 AMINI | Transmission control module, electronic shifter | |
| 27 | 25 AMINI | Audio amplifier (where fitted) | |
| 31 | 25 AMINI | Power seats (where fitted): a 25 A circuit breaker | |
| 32 | 15 AMINI | HVAC module, instrument cluster | |
| 33 | 15 AMINI | Ignition switch, RF hub, steering column lock (where fitted) | |
| 34 | 10 AMINI | Steering column module, clock | |
| 35 | 5 AMINI | Intelligent battery sensor | |
| 36 | 15 AMINI | Electronic exhaust valve (where fitted) | |
| 37 | 20 AMINI | Radio | |
| 38 | 20 AMINI | Armrest power outlet, console media hub | |
| 40 | Spare | ||
| 41 | Spare | ||
| 42 | 30 AJCASE | Rear window defroster | |
| 43 | 20 AMINI | Comfort module: heated steering wheel, rear heated seats | |
| 44 | 10 AMINI | Park assist, blind-spot monitoring, rear camera | |
| 45 | 15 AMINI | Instrument cluster, rear-view mirror, compass, humidity sensor | |
| 46 | Spare | ||
| 47 | 10 AMINI | Adaptive front lighting, automatic high beams, daytime running lamps | |
| 48 | 20 AMINI | Active damping suspension (where fitted) | |
| 49 | Spare | ||
| 50 | Spare | ||
| 51 | 20 AMINI | Front heated seats (where fitted) | |
| 52 | 10 AMINI | Heated cupholders, rear heated-seat switches | |
| 53 | 10 AMINI | HVAC module, cabin temperature sensor | |
| 54 | Spare | ||
| 55 | Spare | ||
| 56 | Spare | ||
| 57 | Spare | ||
| 58 | 10 AMINI | Airbag module | |
| 59 | Not used on the 300: the shared table lists police adjustable pedals (20 A) | ||
| 60 | Not used on the 300: the shared table lists Charger heated washer nozzles (5 A) | ||
| 61 | Spare | ||
| 62 | Spare | ||
| 63 | Spare | ||
| 64 | 25 AMINI | Rear power windows: a 25 A circuit breaker | |
| 65 | 10 AMINI | Airbag module, second feed | |
| 66 | Spare | ||
| 67 | 10 AMINI | Rain and light sensor, sunroof, inside mirror, console outlet lighting | |
| 68 | 10 AMINI | Dual USB run/accessory sense, rear sunshade | |
| 69 | Spare | ||
| 70 | Spare |
