2016 Volvo XC60 I Fuse Box Diagram
The 2016 Volvo XC60 (I) has 5 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box
The 2016 XC60's under-hood fuse box is on the driver's side, rearmost in the bay by the wiper cowl. Pop the clips and lift the black lid to see the owner-replaceable blades.
The housing and its three decks carry on from 2015, and so does the split between four-, five- and six-cylinder ratings. New for 2016: blade 40 powers the five-cylinder's oil pump, crankcase ventilation heater and coolant pump, and blade 41 drops to 7.5 A on four-cylinder cars. Start/Stop cars still leave 1, 3, 4, 5, 11 and 34 empty.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 50 AMIDI | Circuit breaker: central electrical module under the glove compartment - not used on cars with Start/Stop (moved to the cold zone) | |
| 2 | 50 AMIDI | Circuit breaker: central electrical module under the glove compartment | |
| 3 | 60 AMIDI | Circuit breaker: central electrical module in the cargo area - not used on cars with Start/Stop (moved to the cold zone) | |
| 4 | 60 AMIDI | Circuit breaker: central electrical module under the glove compartment - not used on cars with Start/Stop (moved to the cold zone) | |
| 5 | 60 AMIDI | Circuit breaker: central electrical module under the glove compartment - not used on cars with Start/Stop (moved to the cold zone) | |
| 6 | Not used | ||
| 7 | Not used | ||
| 8 | 40 AJCASE | Heated windshield, driver side (option) | |
| 9 | 30 AJCASE | Windshield wipers | |
| 10 | Not used | ||
| 11 | 40 AJCASE | Climate-control blower fan - not used on cars with Start/Stop (moved to the cold zone) | |
| 12 | 40 AJCASE | Heated windshield, passenger side (option) | |
| 13 | 40 AJCASE | ABS pump motor | |
| 14 | 20 AJCASE | ABS valves | |
| 15 | 20 AJCASE | Headlight washers | |
| 16 | 10 AMINI | Active Bending Lights, headlight leveling (option) | |
| 17 | 20 AMINI | Central electrical module under the glove compartment | |
| 18 | 5 AMINI | ABS | |
| 19 | 5 AMINI | Adjustable steering force (option) | |
| 20 | 10 AMINI | Engine control module (ECM), transmission, SRS airbag system | |
| 21 | 10 AMINI | Heated washer nozzles (option) | |
| 22 | Not used | ||
| 23 | 5 AMINI | Lighting panel (headlight switch) | |
| 24 | Not used | ||
| 25 | Not used | ||
| 26 | Not used | ||
| 27 | 5 AMINI | Relay coils | |
| 28 | 20 AMINI | Auxiliary driving lights (option) | |
| 29 | 15 AMINI | Horn | |
| 30 | 10 AMINI | Relay coils, engine control module (ECM) | |
| 31 | 15 AMINI | Automatic transmission control module | |
| 32 | 15 AMINI | A/C compressor (not 4-cylinder engines) | |
| 33 | 5 AMINI | A/C relay coil, relay coils in the Start/Stop cold zone | |
| 34 | 30 AJCASE | Starter motor relay - not used on cars with Start/Stop (moved to the cold zone) | |
| 35 | 20 AMINI | 4-cyl.: engine control module. 5-/6-cyl.: ignition coils; 6-cyl. also the condenser | |
| 36 | 10 AMINI | Engine control module (ECM): 20 A on 4-cylinder engines, 10 A on 5- and 6-cylinder engines | |
| 37 | 10 AMINI | 4-cyl.: mass air flow sensor, thermostat, EVAP valve (10 A). 5-/6-cyl.: injection, engine control module, 6-cyl. mass air flow sensor (15 A) | |
| 38 | 10 AMINI | 5-/6-cyl.: A/C compressor, engine valves, 6-cyl. ECM and solenoids, 5-cyl. oil level sensor (10 A). 4-cyl.: engine valves, oil pump, center oxygen sensor (15 A) | |
| 39 | 15 AMINI | 4-cyl.: front and rear heated oxygen sensors. 5-/6-cyl.: EVAP valve, heated oxygen sensors | |
| 40 | 10 AMINI | 5-cyl.: oil pump, crankcase ventilation heater, coolant pump (10 A). 4-cyl.: ignition coils (15 A) | |
| 41 | 5 AMINI | 5-/6-cyl.: fuel leak detection, 5-cyl. radiator shutter module (5 A). 4-cyl.: fuel leak detection, A/C solenoid (7.5 A) | |
| 42 | 50 AMIDI | Coolant pump (4-cylinder engines) | |
| 43 | 60 AMIDI | Engine cooling fan: 60 A on 4- and 5-cylinder engines, 80 A on 6-cylinder engines | |
| 44 | 100 AMIDI | Power steering |
Glove compartment fuse box A
For 2016, box A under the XC60's glove compartment is reached as before: fold the trim panel aside, press the lock on the cover and fold it up. It is the left-hand of the two boxes.
The infotainment fuses are re-described for the Sensus system: 16 feeds the display, 17 the amplifier and SiriusXM radio, 18 the Sensus control module. Blades 13 and 14 go back to plain power-seat feeds, and 28 now covers park assist, BLIS and the parking camera.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 40 AJCASE | Circuit breaker for the infotainment system and fuses 16-20 | |
| 2 | 25 AJCASE | Windshield and tailgate window washers | |
| 3 | Not used | ||
| 4 | Not used | ||
| 5 | Not used | ||
| 6 | Not used | ||
| 7 | 15 AMINI | 12-volt socket in the cargo area | |
| 8 | 20 AMINI | Driver door controls | |
| 9 | 20 AMINI | Front passenger door controls | |
| 10 | 20 AMINI | Right rear door controls | |
| 11 | 20 AMINI | Left rear door controls | |
| 12 | 20 AMINI | Keyless drive (option) | |
| 13 | 20 AMINI | Power driver seat (option) | |
| 14 | 20 AMINI | Power front passenger seat (option) | |
| 15 | Not used | ||
| 16 | 5 AMINI | Infotainment system display | |
| 17 | 10 AMINI | Infotainment amplifier, SiriusXM satellite radio (option) | |
| 18 | 15 AMINI | Sensus infotainment control module | |
| 19 | 5 AMINI | Bluetooth hands-free system | |
| 20 | Not used | ||
| 21 | 5 AMINI | Laminated panoramic roof (option), courtesy lighting, climate system sensor | |
| 22 | 15 AMINI | 12-volt sockets in the tunnel console | |
| 23 | 15 AMINI | Heated rear seat, passenger side (option) | |
| 24 | 15 AMINI | Heated rear seat, driver side (option) | |
| 25 | Not used | ||
| 26 | 15 AMINI | Heated front passenger seat (option) | |
| 27 | 15 AMINI | Heated driver seat (option) | |
| 28 | 5 AMINI | Park assist, BLIS blind spot system, park assist camera (all options) | |
| 29 | 15 AMINI | All-wheel-drive control module (option) | |
| 30 | 10 AMINI | Active chassis (Four-C) (option) |
Glove compartment fuse box B
The 2016 XC60 keeps box B on the right under the glove compartment. Fold the trim aside and lift the cover to reach its 24 blades.
Blade 17, empty in every earlier year, now feeds the satellite radio and the audio amplifier, and HomeLink moves from blade 3 to blade 6 alongside the courtesy lighting and rain sensor.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 15 AMINI | Tailgate wiper | |
| 2 | Not used | ||
| 3 | 7.5 AMINI | Front courtesy lighting, driver door window switches, power seats (option) | |
| 4 | 5 AMINI | Instrument panel | |
| 5 | 10 AMINI | Adaptive cruise control, collision warning (option) | |
| 6 | 7.5 AMINI | Courtesy lighting, rain sensor (option), HomeLink (option) | |
| 7 | 7.5 AMINI | Steering wheel module | |
| 8 | 10 AMINI | Central locking: fuel filler door | |
| 9 | 15 AMINI | Heated steering wheel (option) | |
| 10 | 15 AMINI | Heated windshield (option) | |
| 11 | 10 AMINI | Tailgate unlock | |
| 12 | 10 AMINI | Power-folding rear seat outboard head restraints (option) | |
| 13 | 20 AMINI | Fuel pump | |
| 14 | 5 AMINI | Climate control panel | |
| 15 | Not used | ||
| 16 | 5 AMINI | Alarm, on-board diagnostics (OBD) socket | |
| 17 | 10 AMINI | Satellite radio (option), audio amplifier | |
| 18 | 10 AMINI | Airbag system, occupant weight sensor | |
| 19 | 5 AMINI | Collision warning system (option) | |
| 20 | 7.5 AMINI | Accelerator pedal sensor, auto-dimming mirror, heated rear seats (option) | |
| 21 | Not used | ||
| 22 | 5 AMINI | Brake lights | |
| 23 | 20 AMINI | Laminated panoramic roof (option) | |
| 24 | 5 AMINI | Immobilizer |
Cargo-area fuse box
The 2016 XC60's cargo-area fuse box sits behind the left-hand side trim of the luggage area. Take the panel out and the fuses face the tailgate.
Blades 1 and 2 serve the two electric parking brake motors, 3 the heated rear window, 4 and cartridge 11 the trailer socket, and 5 the optional 20 A power tailgate. Blades 6-10 and cartridge 12 are empty in the 2016 manual, the same as 2015.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 30 AATO | Electric parking brake, left side | |
| 2 | 30 AATO | Electric parking brake, right side | |
| 3 | 30 AATO | Heated rear window | |
| 4 | 15 AATO | Trailer socket, circuit 2 (option) | |
| 5 | 20 AATO | Power tailgate (option) | |
| 6 | Not used | ||
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | Not used | ||
| 10 | Not used | ||
| 11 | 40 AJCASE | Trailer socket, circuit 1 (option) | |
| 12 | Not used |

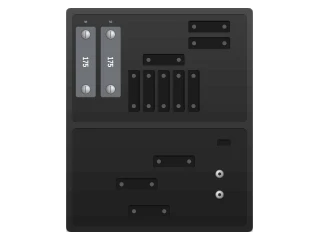

Engine compartment cold zone fuses (Start/Stop)
Only XC60s with Start/Stop - an option with the four-cylinder engines - have this cold-zone fuse set in 2016. It sits in the rear part of the engine bay, split over a main-feed block and a smaller Start/Stop block.
The breakers here replace positions 1, 3, 4, 5, 11 and 34 of the main engine box on those cars. Links 1, 7 and 8 are unused; the 175 A MEGA links A1 and A2 are marked but not drawn, and blade 12, the only owner-serviceable fuse, is shown as a MINI because its type is not published.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | 50 AMIDI | Circuit breaker: fuse box B under the glove compartment | |
| 3 | 60 AMIDI | Circuit breaker: fuse box A under the glove compartment | |
| 4 | 60 AMIDI | Circuit breaker: fuse box A under the glove compartment | |
| 5 | 60 AMIDI | Circuit breaker: central electrical module in the cargo area | |
| 6 | 40 AMIDI | Climate-control blower fan | |
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | 30 AMIDI | Starter motor relay | |
| 10 | 50 AMIDI | Internal diode | |
| 11 | 70 AMIDI | Auxiliary (Start/Stop) battery | |
| 12 | 15 AMINI | Central electrical module: auxiliary battery reference voltage and charging point |
