2017 Volvo S60 II Fuse Box Diagram
The 2017 Volvo S60 (II) has 5 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box
The 2017 handbooks (sedan, Cross Country and Inscription alike) drop the six-cylinder notes: the engine-box rows now cover the Drive-E four-cylinder and the five-cylinder only. The box itself is untouched - lid clips, puller underneath, decal on the inside of the cover.
The cooling fan on 43 is 60 A with the five-cylinder and 60 A or 80 A with a four-cylinder depending on the fan fitted; 35-41 now describe only those two engine families.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 50 AMIDI | Circuit breaker for the central electrical module under the glove compartment - left empty on Start/Stop cars, which feed it from the cold zone | |
| 2 | 50 AMIDI | Circuit breaker for the central electrical module under the glove compartment | |
| 3 | 60 AMIDI | Circuit breaker for the central electrical module in the trunk - left empty on Start/Stop cars, which feed it from the cold zone | |
| 4 | 60 AMIDI | Circuit breaker for the central electrical module under the glove compartment - left empty on Start/Stop cars, which feed it from the cold zone | |
| 5 | 60 AMIDI | Circuit breaker for the central electrical module under the glove compartment - left empty on Start/Stop cars, which feed it from the cold zone | |
| 6 | Not used | ||
| 7 | Not used | ||
| 8 | 40 AJCASE | Heated windshield, driver's half (option) | |
| 9 | 30 AJCASE | Windshield wiper motor | |
| 10 | Not used | ||
| 11 | 40 AJCASE | Climate-control blower fan - left empty on Start/Stop cars, which feed it from the cold zone | |
| 12 | 40 AJCASE | Heated windshield, passenger's half (option) | |
| 13 | 40 AJCASE | ABS pump motor | |
| 14 | 20 AJCASE | ABS valves | |
| 15 | 20 AJCASE | Headlight washers | |
| 16 | 10 AMINI | Active Bending Lights and headlight leveling (option) | |
| 17 | 20 AMINI | Central electrical module under the glove compartment | |
| 18 | 5 AMINI | ABS | |
| 19 | 5 AMINI | Adjustable steering force (option) | |
| 20 | 10 AMINI | Engine control module, transmission, SRS airbag system | |
| 21 | 10 AMINI | Heated washer nozzles (option) | |
| 22 | Not used | ||
| 23 | 5 AMINI | Lighting panel (headlight switch) | |
| 24 | Not used | ||
| 25 | Not used | ||
| 26 | Not used | ||
| 27 | 5 AMINI | Relay coils | |
| 28 | 20 AMINI | Auxiliary driving lights (option) | |
| 29 | 15 AMINI | Horn | |
| 30 | 10 AMINI | Relay coils, engine control module (ECM) | |
| 31 | 15 AMINI | Automatic transmission control module | |
| 32 | 15 AMINI | A/C compressor (not four-cylinder engines) | |
| 33 | 5 AMINI | A/C relay coil, relay coils in the Start/Stop cold zone | |
| 34 | 30 AJCASE | Starter motor relay - left empty on Start/Stop cars, which feed it from the cold zone | |
| 35 | 20 AMINI | Four-cylinder: engine control module. Five-cylinder: ignition coils | |
| 36 | 10 AMINI | Engine control module: 20 A on four-cylinder engines, 10 A on five-cylinder engines | |
| 37 | 10 AMINI | Four-cylinder (10 A): mass air flow meter, thermostat, EVAP valve. Five-cylinder (15 A): fuel injection, engine control module | |
| 38 | 10 AMINI | Five-cylinder (10 A): A/C compressor, engine valves, oil level sensor. Four-cylinder (15 A): engine valves, oil pump, center heated oxygen sensor | |
| 39 | 15 AMINI | Four-cylinder: front and rear heated oxygen sensors. Five-cylinder: EVAP valve, heated oxygen sensors | |
| 40 | 10 AMINI | Five-cylinder (10 A): oil pump, crankcase ventilation heater, coolant pump. Four-cylinder (15 A): ignition coils | |
| 41 | 5 AMINI | Five-cylinder (5 A): fuel leak detection, radiator shutter module. Four-cylinder (7.5 A): fuel leak detection, A/C solenoid | |
| 42 | 50 AMIDI | Electric coolant pump (four-cylinder engines) | |
| 43 | 60 AMIDI | Engine cooling fan: 60 A with the five-cylinder; 60 A or 80 A with four-cylinder engines | |
| 44 | 100 AMIDI | Power steering |
Glove compartment fuse box A
In a 2017 S60 the general fuses are in box A, behind the fold-down trim under the passenger's glove compartment, left of the control-module box B.
The 2017 table repeats 2016: washers on cartridge 2, heated front seats on 26/27 and rear on 23/24, Four-C active chassis on 30.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 40 AJCASE | Circuit breaker for the infotainment system and fuses 16-20 | |
| 2 | 25 AJCASE | Windshield washers | |
| 3 | Not used | ||
| 4 | Not used | ||
| 5 | Not used | ||
| 6 | 5 AMINI | Keyless drive door handles (option) | |
| 7 | Not used | ||
| 8 | 20 AMINI | Driver's door control panel | |
| 9 | 20 AMINI | Front passenger's door control panel | |
| 10 | 20 AMINI | Right rear door control panel | |
| 11 | 20 AMINI | Left rear door control panel | |
| 12 | 7.5 AMINI | Keyless drive (option) | |
| 13 | 20 AMINI | Power driver's seat (option) | |
| 14 | 20 AMINI | Power front passenger's seat (option) | |
| 15 | Not used | ||
| 16 | 5 AMINI | Infotainment system display | |
| 17 | 10 AMINI | Infotainment amplifier, SiriusXM satellite radio (option) | |
| 18 | 15 AMINI | Sensus infotainment control module | |
| 19 | 5 AMINI | Bluetooth hands-free system | |
| 20 | Not used | ||
| 21 | 5 AMINI | Power moonroof (option), courtesy lighting, climate-system sensor | |
| 22 | 15 AMINI | 12-volt power sockets in the tunnel console | |
| 23 | 15 AMINI | Heated rear seat, passenger's side (option) | |
| 24 | 15 AMINI | Heated rear seat, driver's side (option) | |
| 25 | Not used | ||
| 26 | 15 AMINI | Heated front passenger's seat (option) | |
| 27 | 15 AMINI | Heated driver's seat (option) | |
| 28 | 5 AMINI | Park assist, BLIS blind spot system, park assist camera (options) | |
| 29 | 15 AMINI | All-wheel-drive control module (option) | |
| 30 | 10 AMINI | Active chassis Four-C (option) |
Glove compartment fuse box B
In a 2017 S60 the control-module fuses sit in box B, right of box A behind the fold-away lining under the glove compartment.
The 2017 table matches 2016, with heated steering wheel on 9, heated windshield on 10 and the trunk opening on 11.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | Not used | ||
| 3 | 7.5 AMINI | Front courtesy lighting, driver's door window switches, power seats (option) | |
| 4 | 5 AMINI | Instrument panel | |
| 5 | 10 AMINI | Adaptive cruise control and collision warning (option) | |
| 6 | 7.5 AMINI | Courtesy lighting, rain sensor (option), HomeLink (option) | |
| 7 | 7.5 AMINI | Steering wheel module | |
| 8 | 10 AMINI | Central locking: fuel filler door | |
| 9 | 15 AMINI | Heated steering wheel (option) | |
| 10 | 15 AMINI | Heated windshield (option) | |
| 11 | 10 AMINI | Trunk opening | |
| 12 | 10 AMINI | Power-folding outboard rear head restraints (option) | |
| 13 | 20 AMINI | Fuel pump | |
| 14 | 5 AMINI | Climate control panel | |
| 15 | Not used | ||
| 16 | 5 AMINI | Alarm, on-board diagnostics (OBD) socket | |
| 17 | 10 AMINI | Satellite radio (option), audio amplifier | |
| 18 | 10 AMINI | Airbag system, occupant weight sensor | |
| 19 | 5 AMINI | Collision warning system (option) | |
| 20 | 7.5 AMINI | Accelerator pedal sensor, auto-dimming mirror, heated rear seats (option) | |
| 21 | Not used | ||
| 22 | 5 AMINI | Brake lights | |
| 23 | 20 AMINI | Power moonroof (option) | |
| 24 | 5 AMINI | Immobilizer |
Trunk fuse box
In the 2017 S60 the fuses for the trailer connection and parking brake are behind the left trunk lining, on the rear electrical centre.
The 2017 assignments match every earlier year; nothing has moved in this box since the first printing.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 30 AATO | Electric parking brake, left side | |
| 2 | 30 AATO | Electric parking brake, right side | |
| 3 | 30 AATO | Heated rear window | |
| 4 | 15 AATO | Trailer socket, circuit 2 (option) | |
| 5 | Not used | ||
| 6 | 15 AATO | 12-volt socket in the trunk | |
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | Not used | ||
| 10 | Not used | ||
| 11 | 40 AJCASE | Trailer socket, circuit 1 (option) | |
| 12 | Not used |

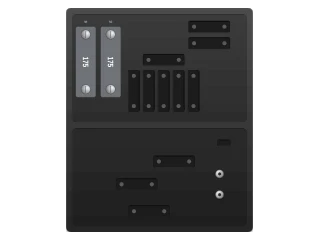

Engine compartment cold zone (Start/Stop)
On a 2017 S60 with Start/Stop the cold-zone fuses sit in the engine compartment in two small holders: bolt-down links in the upper one, links 9-11 and blade 12 in the lower.
The 2017 table repeats 2016: 50 A internal diode on 10, 70 A auxiliary battery on 11, 30 A starter relay on 9.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | 50 AMIDI | Circuit breaker: fuse box B under the glove compartment | |
| 3 | 60 AMIDI | Circuit breaker: fuse box A under the glove compartment | |
| 4 | 60 AMIDI | Circuit breaker: fuse box A under the glove compartment | |
| 5 | 60 AMIDI | Circuit breaker: central electrical module in the trunk | |
| 6 | 40 AMIDI | Climate-control blower fan | |
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | 30 AMIDI | Starter motor relay | |
| 10 | 50 AMIDI | Internal diode | |
| 11 | 70 AMIDI | Auxiliary (Start/Stop) battery | |
| 12 | 15 AMINI | Central electrical module: auxiliary battery reference voltage and charging point |
