2016 Volvo S60 II Fuse Box Diagram
The 2016 Volvo S60 (II) has 5 fuse boxes. Choose the one you’re looking at.
Find a fuse
Search by component, fuse number or description.
Popular searches
Engine compartment fuse box
For 2016 the S60 family grew to the raised S60 Cross Country and the long-wheelbase S60 Inscription; both handbooks print the same engine-box table as the regular sedan, so this diagram serves all three. Unclip the lid at the driver's side rear of the engine compartment.
2016 changes: 38 adds the five-cylinder oil level sensor, 40 also feeds the five-cylinder coolant pump, and the four-cylinder side of 41 becomes a 7.5 A A/C solenoid fuse.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 50 AMIDI | Circuit breaker for the central electrical module under the glove compartment - left empty on Start/Stop cars, which feed it from the cold zone | |
| 2 | 50 AMIDI | Circuit breaker for the central electrical module under the glove compartment | |
| 3 | 60 AMIDI | Circuit breaker for the central electrical module in the trunk - left empty on Start/Stop cars, which feed it from the cold zone | |
| 4 | 60 AMIDI | Circuit breaker for the central electrical module under the glove compartment - left empty on Start/Stop cars, which feed it from the cold zone | |
| 5 | 60 AMIDI | Circuit breaker for the central electrical module under the glove compartment - left empty on Start/Stop cars, which feed it from the cold zone | |
| 6 | Not used | ||
| 7 | Not used | ||
| 8 | 40 AJCASE | Heated windshield, driver's half (option) | |
| 9 | 30 AJCASE | Windshield wiper motor | |
| 10 | Not used | ||
| 11 | 40 AJCASE | Climate-control blower fan - left empty on Start/Stop cars, which feed it from the cold zone | |
| 12 | 40 AJCASE | Heated windshield, passenger's half (option) | |
| 13 | 40 AJCASE | ABS pump motor | |
| 14 | 20 AJCASE | ABS valves | |
| 15 | 20 AJCASE | Headlight washers | |
| 16 | 10 AMINI | Active Bending Lights and headlight leveling (option) | |
| 17 | 20 AMINI | Central electrical module under the glove compartment | |
| 18 | 5 AMINI | ABS | |
| 19 | 5 AMINI | Adjustable steering force (option) | |
| 20 | 10 AMINI | Engine control module, transmission, SRS airbag system | |
| 21 | 10 AMINI | Heated washer nozzles (option) | |
| 22 | Not used | ||
| 23 | 5 AMINI | Lighting panel (headlight switch) | |
| 24 | Not used | ||
| 25 | Not used | ||
| 26 | Not used | ||
| 27 | 5 AMINI | Relay coils | |
| 28 | 20 AMINI | Auxiliary driving lights (option) | |
| 29 | 15 AMINI | Horn | |
| 30 | 10 AMINI | Relay coils, engine control module (ECM) | |
| 31 | 15 AMINI | Automatic transmission control module | |
| 32 | 15 AMINI | A/C compressor (not four-cylinder engines) | |
| 33 | 5 AMINI | A/C relay coil, relay coils in the Start/Stop cold zone | |
| 34 | 30 AJCASE | Starter motor relay - left empty on Start/Stop cars, which feed it from the cold zone | |
| 35 | 20 AMINI | Four-cylinder: engine control module. Five-/six-cylinder: ignition coils; six-cylinder also the condenser | |
| 36 | 10 AMINI | Engine control module: 20 A on four-cylinder engines, 10 A on five- and six-cylinder engines | |
| 37 | 10 AMINI | Four-cylinder (10 A): mass air flow meter, thermostat, EVAP valve. Five-/six-cylinder (15 A): fuel injection, engine control module, six-cylinder air flow meter | |
| 38 | 10 AMINI | Five-/six-cylinder (10 A): A/C compressor, engine valves, six-cylinder ECM and solenoids, five-cylinder oil level sensor. Four-cylinder (15 A): engine valves, oil pump, center oxygen sensor | |
| 39 | 15 AMINI | Four-cylinder: front and rear heated oxygen sensors. Five-/six-cylinder: EVAP valve, heated oxygen sensors | |
| 40 | 10 AMINI | Five-cylinder (10 A): oil pump, crankcase ventilation heater, coolant pump. Four-cylinder (15 A): ignition coils | |
| 41 | 5 AMINI | Five-/six-cylinder (5 A): fuel leak detection, five-cylinder radiator shutter module. Four-cylinder (7.5 A): fuel leak detection, A/C solenoid | |
| 42 | 50 AMIDI | Electric coolant pump (four-cylinder engines) | |
| 43 | 60 AMIDI | Engine cooling fan: 60 A with four- and five-cylinder engines, 80 A with the six-cylinder | |
| 44 | 100 AMIDI | Power steering |
Glove compartment fuse box A
Box A on the 2016 S60, S60 Cross Country and S60 Inscription is the left of the pair under the passenger's glove compartment; the three handbooks print one table for it.
2016 renames the infotainment fuses around Sensus: 16 is the display, 18 the Sensus control module, and 28 drops the trailer-hitch module to cover park assist, BLIS and the camera.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 40 AJCASE | Circuit breaker for the infotainment system and fuses 16-20 | |
| 2 | 25 AJCASE | Windshield washers | |
| 3 | Not used | ||
| 4 | Not used | ||
| 5 | Not used | ||
| 6 | 5 AMINI | Keyless drive door handles (option) | |
| 7 | Not used | ||
| 8 | 20 AMINI | Driver's door control panel | |
| 9 | 20 AMINI | Front passenger's door control panel | |
| 10 | 20 AMINI | Right rear door control panel | |
| 11 | 20 AMINI | Left rear door control panel | |
| 12 | 7.5 AMINI | Keyless drive (option) | |
| 13 | 20 AMINI | Power driver's seat (option) | |
| 14 | 20 AMINI | Power front passenger's seat (option) | |
| 15 | Not used | ||
| 16 | 5 AMINI | Infotainment system display | |
| 17 | 10 AMINI | Infotainment amplifier, SiriusXM satellite radio (option) | |
| 18 | 15 AMINI | Sensus infotainment control module | |
| 19 | 5 AMINI | Bluetooth hands-free system | |
| 20 | Not used | ||
| 21 | 5 AMINI | Power moonroof (option), courtesy lighting, climate-system sensor | |
| 22 | 15 AMINI | 12-volt power sockets in the tunnel console | |
| 23 | 15 AMINI | Heated rear seat, passenger's side (option) | |
| 24 | 15 AMINI | Heated rear seat, driver's side (option) | |
| 25 | Not used | ||
| 26 | 15 AMINI | Heated front passenger's seat (option) | |
| 27 | 15 AMINI | Heated driver's seat (option) | |
| 28 | 5 AMINI | Park assist, BLIS blind spot system, park assist camera (options) | |
| 29 | 15 AMINI | All-wheel-drive control module (option) | |
| 30 | 10 AMINI | Active chassis Four-C (option) |
Glove compartment fuse box B
For 2016 box B serves the sedan, the S60 Cross Country and the S60 Inscription alike; it is the right-hand holder under the passenger's glove compartment.
2016 fills 17 with the satellite radio and audio amplifier (10 A) and moves HomeLink from 3 to the courtesy-lighting fuse 6.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | Not used | ||
| 3 | 7.5 AMINI | Front courtesy lighting, driver's door window switches, power seats (option) | |
| 4 | 5 AMINI | Instrument panel | |
| 5 | 10 AMINI | Adaptive cruise control and collision warning (option) | |
| 6 | 7.5 AMINI | Courtesy lighting, rain sensor (option), HomeLink (option) | |
| 7 | 7.5 AMINI | Steering wheel module | |
| 8 | 10 AMINI | Central locking: fuel filler door | |
| 9 | 15 AMINI | Heated steering wheel (option) | |
| 10 | 15 AMINI | Heated windshield (option) | |
| 11 | 10 AMINI | Trunk opening | |
| 12 | 10 AMINI | Power-folding outboard rear head restraints (option) | |
| 13 | 20 AMINI | Fuel pump | |
| 14 | 5 AMINI | Climate control panel | |
| 15 | Not used | ||
| 16 | 5 AMINI | Alarm, on-board diagnostics (OBD) socket | |
| 17 | 10 AMINI | Satellite radio (option), audio amplifier | |
| 18 | 10 AMINI | Airbag system, occupant weight sensor | |
| 19 | 5 AMINI | Collision warning system (option) | |
| 20 | 7.5 AMINI | Accelerator pedal sensor, auto-dimming mirror, heated rear seats (option) | |
| 21 | Not used | ||
| 22 | 5 AMINI | Brake lights | |
| 23 | 20 AMINI | Power moonroof (option) | |
| 24 | 5 AMINI | Immobilizer |
Trunk fuse box
The S60 Cross Country and long-wheelbase S60 Inscription of 2016 share the sedan's trunk fuse box - pull back the carpeted panel on the trunk's left wall.
The 2016 books keep the table: 30 A for each parking brake motor and the rear window, 15 A for the trunk socket on 6.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | 30 AATO | Electric parking brake, left side | |
| 2 | 30 AATO | Electric parking brake, right side | |
| 3 | 30 AATO | Heated rear window | |
| 4 | 15 AATO | Trailer socket, circuit 2 (option) | |
| 5 | Not used | ||
| 6 | 15 AATO | 12-volt socket in the trunk | |
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | Not used | ||
| 10 | Not used | ||
| 11 | 40 AJCASE | Trailer socket, circuit 1 (option) | |
| 12 | Not used |

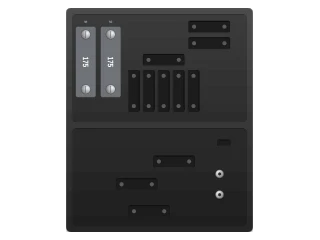

Engine compartment cold zone (Start/Stop)
The 2016 S60 - sedan, Cross Country and Inscription - uses the Start/Stop cold zone only on four-cylinder engines with that option; five-cylinder cars do without it.
Links 2-5 feed glove boxes A and B and the trunk box, 6 the blower, 9 the starter relay, 11 the auxiliary battery; 12 (15 A) is the one fuse an owner may change.
| No. | Function | Amp | Description |
|---|---|---|---|
| 1 | Not used | ||
| 2 | 50 AMIDI | Circuit breaker: fuse box B under the glove compartment | |
| 3 | 60 AMIDI | Circuit breaker: fuse box A under the glove compartment | |
| 4 | 60 AMIDI | Circuit breaker: fuse box A under the glove compartment | |
| 5 | 60 AMIDI | Circuit breaker: central electrical module in the trunk | |
| 6 | 40 AMIDI | Climate-control blower fan | |
| 7 | Not used | ||
| 8 | Not used | ||
| 9 | 30 AMIDI | Starter motor relay | |
| 10 | 50 AMIDI | Internal diode | |
| 11 | 70 AMIDI | Auxiliary (Start/Stop) battery | |
| 12 | 15 AMINI | Central electrical module: auxiliary battery reference voltage and charging point |
